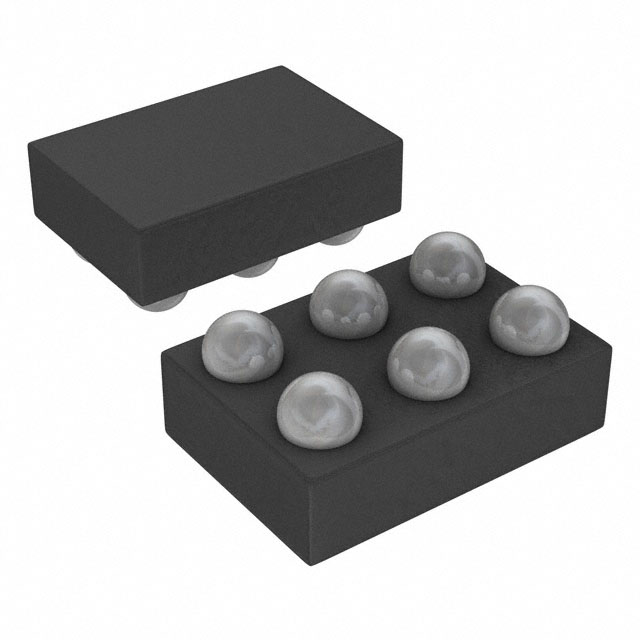

MAX9911EWT+T
ActiveAnalog Devices Inc./Maxim Integrated
IC OPAMP GP 1 CIRCUIT 6WLP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX9911EWT+T
ActiveAnalog Devices Inc./Maxim Integrated
IC OPAMP GP 1 CIRCUIT 6WLP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9911EWT+T | MAX9911 Series |
|---|---|---|
| Amplifier Type | General Purpose | General Purpose |
| Current - Input Bias | 1 pA | 1 pA |
| Current - Output / Channel | 15 mA | 15 mA |
| Current - Supply | 4 µA | 4 µA |
| Gain Bandwidth Product | 200 kHz | 200 kHz |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | Rail-to-Rail | Rail-to-Rail |
| Package / Case | WLBGA, 6-WFBGA | 6-TSSOP, SC-88, SOT-363, WLBGA, 6-WFBGA |
| Slew Rate | 0.1 V/µs | 0.1 V/µs |
| Supplier Device Package | 6-WLP | SC-70-6, 6-WLP |
| Supplier Device Package [x] | 1.24 | 1.24 |
| Supplier Device Package [y] | 0.84 | 0.84 |
| Voltage - Input Offset | 200 çV | 200 çV |
| Voltage - Supply Span (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 1.8 V | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.36 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.30 | |||
| 100 | $ 1.05 | |||
| 250 | $ 0.92 | |||
| 500 | $ 0.85 | |||
| 1000 | $ 0.79 | |||
| Digi-Reel® | 1 | $ 2.36 | ||
| 10 | $ 1.52 | |||
| 25 | $ 1.30 | |||
| 100 | $ 1.05 | |||
| 250 | $ 0.92 | |||
| 500 | $ 0.85 | |||
| 1000 | $ 0.79 | |||
| Tape & Reel (TR) | 2500 | $ 0.72 | ||
| 5000 | $ 0.68 | |||
| 7500 | $ 0.66 | |||
| 12500 | $ 0.64 | |||
MAX9911 Series
IC OPAMP GP 1 CIRCUIT SC70-6
| Part | Package / Case | Gain Bandwidth Product | Operating Temperature [Max] | Operating Temperature [Min] | Slew Rate | Number of Circuits | Voltage - Supply Span (Min) [Min] | Voltage - Input Offset | Current - Input Bias | Current - Output / Channel | Voltage - Supply Span (Max) [Max] | Amplifier Type | Supplier Device Package | Mounting Type | Output Type | Current - Supply | Supplier Device Package [y] | Supplier Device Package [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9911EXT-T | 6-TSSOP, SC-88, SOT-363 | 200 kHz | 85 °C | -40 °C | 0.1 V/µs | 1 | 1.8 V | 200 çV | 1 pA | 15 mA | 5.5 V | General Purpose | SC-70-6 | Surface Mount | Rail-to-Rail | 4 µA | ||
Analog Devices Inc./Maxim Integrated MAX9911EWT+T | 6-WFBGA, WLBGA | 200 kHz | 85 °C | -40 °C | 0.1 V/µs | 1 | 1.8 V | 200 çV | 1 pA | 15 mA | 5.5 V | General Purpose | 6-WLP | Surface Mount | Rail-to-Rail | 4 µA | 0.84 | 1.24 |
Analog Devices Inc./Maxim Integrated MAX9911EXT+T | 6-TSSOP, SC-88, SOT-363 | 200 kHz | 85 °C | -40 °C | 0.1 V/µs | 1 | 1.8 V | 200 çV | 1 pA | 5.5 V | General Purpose | SC-70-6 | Surface Mount | Rail-to-Rail | 4 µA |
Description
General part information
MAX9911 Series
General Purpose Amplifier 1 Circuit Rail-to-Rail 6-WLP (1.24x0.84)
