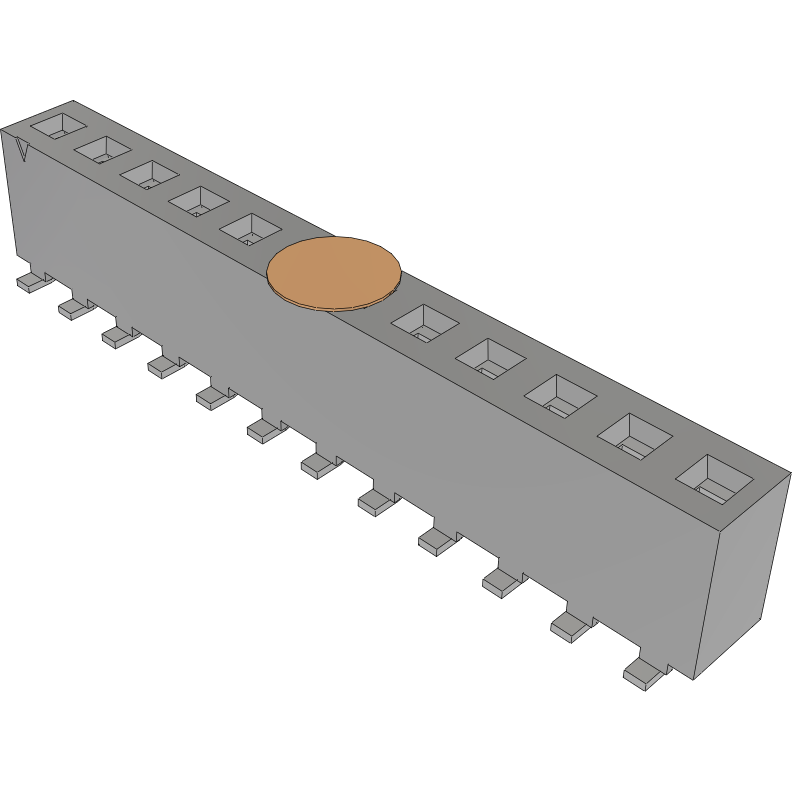

FHP-12-02-TM-S-K

Active

Samtec Inc.

CONN SOCKET STRIP SKT 12 POS 3.96MM SOLDER ST TOP ENTRY SMD TUBE

Deep-Dive with AI

Search across all available documentation for this part.

FHP-12-02-TM-S-K

Active

Samtec Inc.

CONN SOCKET STRIP SKT 12 POS 3.96MM SOLDER ST TOP ENTRY SMD TUBE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FHP-12-02-TM-S-K

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	9.35 mm
Insulation Height	0.368 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Termination	Solder

FHP-12 Series

Part	Contact Material	Mounting Type	Fastening Type	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Post	Contact Type	Connector Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Insulation Material	Number of Rows	Number of Positions	Number of Positions Loaded	Insulation Color	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Features
Samtec Inc. FHP-12-01-TM-S	Phosphor Bronze	Through Hole	Push-Pull	0.35 in	8.89 mm	Tin	Female Socket	Receptacle	Solder	105 ░C	-55 °C	Square	Liquid Crystal Polymer (LCP)	1	12	All	Black	0.102 in	2.6 mm	0.156 in	3.96 mm
Samtec Inc. FHP-12-01-H-S	Phosphor Bronze	Through Hole	Push-Pull	0.35 in	8.89 mm	Gold	Female Socket	Receptacle	Solder	105 ░C	-55 °C	Square	Liquid Crystal Polymer (LCP)	1	12	All	Black	0.102 in	2.6 mm	0.156 in	3.96 mm	30 Áin	0.76 Ám	Gold	3 µin	0.076 µm
Samtec Inc. FHP-12-02-T-S-LC	Phosphor Bronze	Surface Mount	Push-Pull			Tin	Female Socket	Receptacle	Solder	105 ░C	-55 °C	Square	Liquid Crystal Polymer (LCP)	1	12	All	Black			0.156 in	3.96 mm						9.35 mm	0.368 in
Samtec Inc. FHP-12-02-TM-S-K	Phosphor Bronze	Surface Mount	Push-Pull			Tin	Female Socket	Receptacle	Solder	105 ░C	-55 °C	Square	Liquid Crystal Polymer (LCP)	1	12	All	Black			0.156 in	3.96 mm						9.35 mm	0.368 in	Pick and Place
Samtec Inc. FHP-12-01-T-S-LC	Phosphor Bronze	Through Hole	Push-Pull	0.35 in	8.89 mm	Tin	Female Socket	Receptacle	Solder	105 ░C	-55 °C	Square	Liquid Crystal Polymer (LCP)	1	12	All	Black	0.102 in	2.6 mm	0.156 in	3.96 mm
Samtec Inc. FHP-12-02-TM-S-LC	Phosphor Bronze	Surface Mount	Push-Pull			Tin	Female Socket	Receptacle	Solder	105 ░C	-55 °C	Square	Liquid Crystal Polymer (LCP)	1	12	All	Black			0.156 in	3.96 mm						9.35 mm	0.368 in
Samtec Inc. FHP-12-01-T-S	Phosphor Bronze	Through Hole	Push-Pull	0.35 in	8.89 mm	Tin	Female Socket	Receptacle	Solder	105 ░C	-55 °C	Square	Liquid Crystal Polymer (LCP)	1	12	All	Black	0.102 in	2.6 mm	0.156 in	3.96 mm
Samtec Inc. FHP-12-02-T-S-TR	Phosphor Bronze	Surface Mount	Push-Pull			Tin	Female Socket	Receptacle	Solder	105 ░C	-55 °C	Square	Liquid Crystal Polymer (LCP)	1	12	All	Black			0.156 in	3.96 mm						9.35 mm	0.368 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	12	$ 6.71

Description

General part information

FHP-12 Series

12 Position Receptacle Connector 0.156" (3.96mm) Surface Mount Tin
