AKKL-4756A-19

Active

Essentra Access Solutions

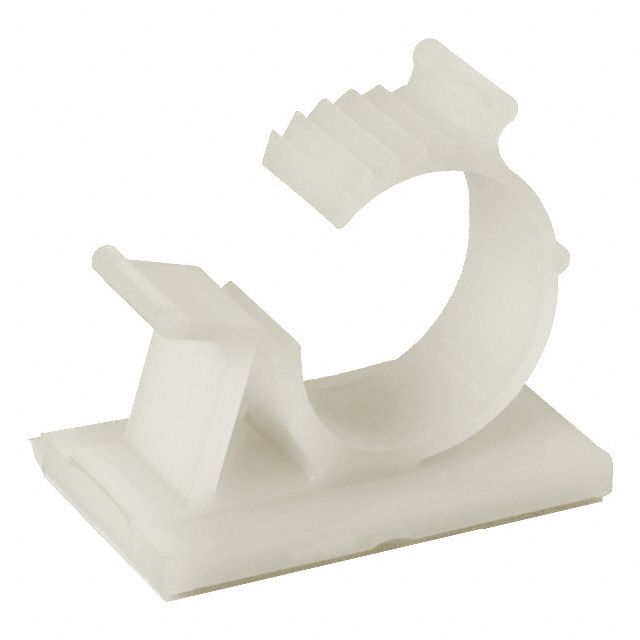

FASTENER, ADHESIVE BACKED CABLE CLAMP, 14.3 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 31.8 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

AKKL-4756A-19

Active

Essentra Access Solutions

FASTENER, ADHESIVE BACKED CABLE CLAMP, 14.3 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 31.8 MM

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AKKL-4756A-19

Adhesive	Acrylic Based (RMS-15)
Color	Natural
Features	Flame Retardant
Height [z]	27.69 mm
Height [z]	1.09 in
Length	31.75 mm
Length	1.25 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Adhesive
Opening Size [Max]	14.27 mm
Opening Size [Max]	0.562 in
Opening Size [Min]	0.469 in
Opening Size [Min]	11.91 mm
Type	C-Type, Clip
Type Attributes	Locking, Round
Width [y]	0.75 in
Width [y]	19.05 mm

AKKL Series

Part	Material	Width [y]	Width [y]	Adhesive	Type	Mounting Type	Color	Material Flammability Rating	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Height [z]	Height [z]	Type Attributes	Length [x]	Length [x]	Opening Size [Min]	Opening Size [Min]	Opening Size [Max]	Opening Size [Max]	Width	Width [x]	Length	Length	Width	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Features	Opening Size [Min]	Opening Size [Max]	Opening Size [Max]
Essentra Access Solutions AKKL-3140A-RT	Polyamide (PA66) Nylon 6/6	0.75 in	19.05 mm	Acrylic Based (RMS-15)	C-Type Clip	Adhesive	Natural	UL94 V-2	0.406 in	0.312 in	10.31 mm	7.92 mm	0.866 in	22 mm	Locking Round	1 in	25.4 mm
Essentra Access Solutions AKKL-10112A-RT	Polyamide (PA66) Nylon 6/6			Acrylic Based (RMS-15)	C-Type Clip	Adhesive	Natural	UL94 V-2					2 in	50.8 mm	Locking Round	2.5 in	63.5 mm	1 in	25.4 mm	31.75 mm	1.25 in	25.4 mm	1 in
Essentra Access Solutions AKKL-2140A-RT	Polyamide (PA66) Nylon 6/6			Rubber Based (RMS-136)	C-Type Clip	Adhesive	Natural	UL94 V-2	0.258 in	0.215 in	6.55 mm	5.46 mm	0.708 in	17.98 mm	Locking Round							16.51 mm		0.85 "	21.59 mm	0.65 in
Essentra Access Solutions AKKL-3140-DHB	Polyamide (PA66) Nylon 6/6	0.75 in	19.05 mm	Acrylic Based (RMS-500)	C-Type Clip	Adhesive	Natural	UL94 V-2	0.406 in	0.312 in	10.31 mm	7.92 mm	0.866 in	22 mm	Locking Round	1 in	25.4 mm
Essentra Access Solutions AKKL-8710A-RT	Polyamide (PA66) Nylon 6/6			Acrylic Based (RMS-15)	C-Type Clip	Adhesive	Natural	UL94 V-2					1.75 in	44.45 mm	Locking Round							25.4 mm	1 in	2 in	50.8 mm		25.4 mm	22.22 mm	0.875 in	1 in
Essentra Access Solutions AKKL-3140-19	Polyamide (PA66) Nylon 6/6	0.75 in	19.05 mm		C-Type Clip		Natural	UL94 V-0	0.406 in	0.312 in	10.31 mm	7.92 mm	0.866 in	22 mm	Locking Round	1 in	25.4 mm														Flame Retardant
Essentra Access Solutions AKKL-4756-DHB	Polyamide (PA66) Nylon 6/6	0.75 in	19.05 mm	Acrylic Based (RMS-500)	C-Type Clip	Adhesive	Natural	UL94 V-2					1.09 in	27.69 mm	Locking Round				11.91 mm					1.25 in	31.75 mm							0.469 in	14.27 mm	0.562 in
Essentra Access Solutions AKKL-3140A-19	Polyamide (PA66) Nylon 6/6	0.75 in	19.05 mm	Acrylic Based (RMS-15)	C-Type Clip	Adhesive	Natural	UL94 V-0	0.406 in	0.312 in	10.31 mm	7.92 mm	0.866 in	22 mm	Locking Round	1 in	25.4 mm														Flame Retardant
Essentra Access Solutions AKKL-4756-19	Polyamide (PA66) Nylon 6/6	0.75 in	19.05 mm		C-Type Clip		Natural	UL94 V-0					1.09 in	27.69 mm	Locking Round				11.91 mm					1.25 in	31.75 mm						Flame Retardant	0.469 in	14.27 mm	0.562 in
Essentra Access Solutions AKKL-4756A-19	Polyamide (PA66) Nylon 6/6	0.75 in	19.05 mm	Acrylic Based (RMS-15)	C-Type Clip	Adhesive	Natural	UL94 V-0					1.09 in	27.69 mm	Locking Round				11.91 mm					1.25 in	31.75 mm						Flame Retardant	0.469 in	14.27 mm	0.562 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.89
		10	$ 0.75
		25	$ 0.72
		50	$ 0.71
		100	$ 0.68
		300	$ 0.61
		500	$ 0.55
		1000	$ 0.54

Description

General part information

AKKL Series

Cable Clip, C-Type Natural Adhesive 0.469" ~ 0.562" (11.91mm ~ 14.27mm)
