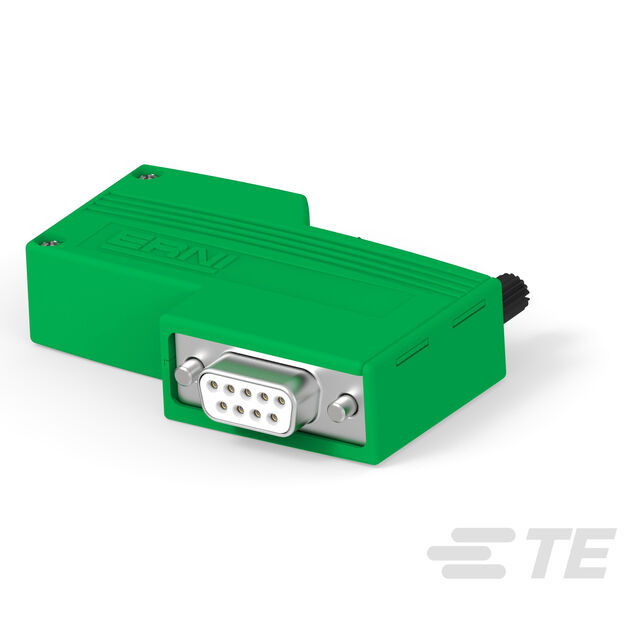

Specification	103643-E

Color	Green
Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Type	Signal
Dielectric Material	Plastic
Features	Backshell
Flange Feature	Cable Side, Male Jackscrew (4-40)
Ingress Protection	IP40
Material Flammability Rating	UL94 V-1
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Shell Size	1
Termination	Screw
