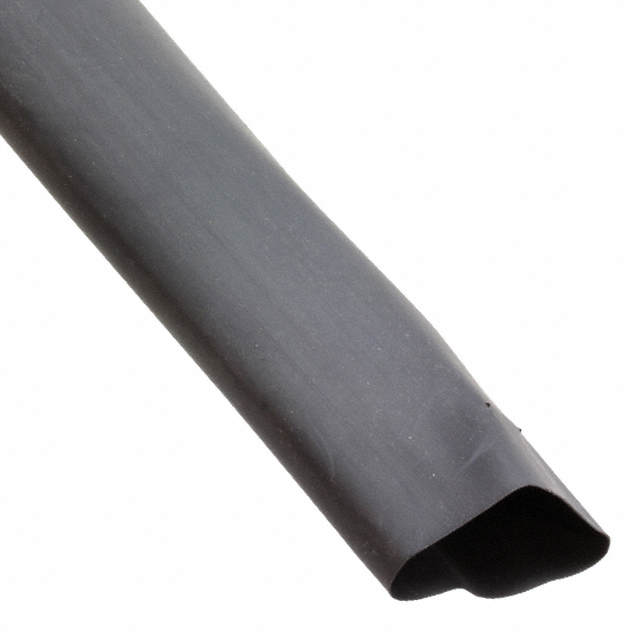

V4-1-0-SP

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK 1" X 250' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

V4-1-0-SP

Obsolete

TE Connectivity Raychem Cable Protection

HEATSHRINK 1" X 250' BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	V4-1-0-SP

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.5 in
Inner Diameter - Recovered [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	1 in
Inner Diameter - Supplied [diameter]	25.4 mm
Length	3000 "
Length	76.2 m
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-30 ░C
Recovered Wall Thickness	0.02 in
Recovered Wall Thickness	0.51 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	65 °F, 18 °C
Type	Tubing, Flexible

RAYCHEM Versafit V4 Series

Heat Shrink Tubing & Sleeves HS-TBG 12.7MM BK PRICE PER FT

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Material	Features	Inner Diameter - Supplied	Inner Diameter - Supplied [diameter]	Color	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Type	Shrinkage Ratio	Shrink Temperature	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Length	Length [x]	Length	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered	Inner Diameter - Recovered
TE Connectivity Raychem Cable Protection V4-5.0-0-SP-SM	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated	Flame Retardant	5.5 mm	0.217 in	Black	1 m	3.28 ft	0.01 in	0.25 mm	125 °C	-30 ░C	Tubing Flexible	2 to 1	70 °C	144 Months
TE Connectivity Raychem Cable Protection V4-3/64-0-SP	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated	Flame Retardant		0.046 in	Black			0.012 in	0.3 mm	125 °C	-30 ░C	Tubing Flexible	2 to 1	70 °C	144 Months	0.023 in	0.58 mm	914.4 m	3000 ft	1.17 mm
TE Connectivity Raychem Cable Protection V4-3.5-4-SP-SM	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated	Flame Retardant		0.15 in	Yellow			0.01 in	0.25 mm	125 °C	-30 ░C	Tubing Flexible	2 to 1	70 °C	144 Months	1.75 mm				3.81 mm	0.069 in
TE Connectivity Raychem Cable Protection V4-2.0-0-SP-SM	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated	Flame Retardant		0.092 in	Black	2 m 101.6 mm	0.333 ft 6.56 ft	0.01 in	0.25 mm	125 °C	-30 ░C	Tubing Flexible	2 to 1	70 °C	144 Months	0.99 mm		19.05 mm 25.4 mm 38.1 mm 50.8 mm 152.4 mm 200 m	0.062 ' 0.083 ft 0.125 ' 0.167 ' 656.2 ft	2.34 mm	0.039 in	0.75 " 1 in 1.5 " 2 " 6 "	4 "	0.5 '
TE Connectivity Raychem Cable Protection V4-6.0-0-SP	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated	Flame Retardant			Black			0.011 "	0.28 mm	125 °C	-30 ░C	Tubing Flexible	2 to 1	70 °C	144 Months	2.99 mm				0.255 in	0.118 in				6.48 mm
TE Connectivity Raychem Cable Protection V4-3/16-0-SP	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated	Flame Retardant		0.187 in	Black			0.013 in	0.33 mm	125 °C	-30 ░C	Tubing Flexible	2 to 1	70 °C	144 Months			304.8 m	1000 ft	4.75 mm						2.36 mm	0.093 in
TE Connectivity Raychem Cable Protection V4-1/4-0-SP	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated	Flame Retardant		0.25 in	Black	228.6 m	750 '	0.014 "	0.36 mm	125 °C	-30 ░C	Tubing Flexible	2 to 1	70 °C	144 Months					6.35 mm	0.125 in					3.18 mm
TE Connectivity Raychem Cable Protection V4-1-0-SP	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated	Flame Retardant		1 in	Black			0.02 in	0.51 mm	125 °C	-30 ░C	Tubing Flexible	2 to 1	70 °C	144 Months	12.7 mm		76.2 m	3000 "	25.4 mm	0.5 in
TE Connectivity Raychem Cable Protection V4-1/2-0-SP	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated	Flame Retardant		0.5 in	Black	152.4 m	500 '	0.014 "	0.36 mm	125 °C	-30 ░C	Tubing Flexible	2 to 1	70 °C	144 Months	6.35 mm				12.7 mm	0.25 in
TE Connectivity Raychem Cable Protection V4-3/32-0-SP	18 °C 65 °F	35 °C	Polyolefin (PO) Irradiated	Flame Retardant			Black			0.012 in	0.3 mm	125 °C	-30 ░C	Tubing Flexible	2 to 1	70 °C	144 Months	1.19 mm		762 m	2500 ft	0.093 in	0.047 in				2.36 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RAYCHEM Versafit V4 Series

Heat Shrink Tubing & Sleeves HS-TBG 12.7MM BK PRICE PER FT
