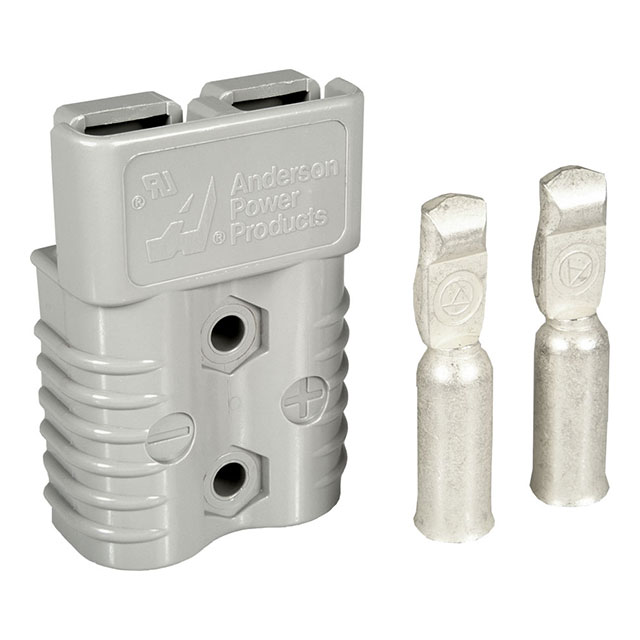

6325G1

Active

Anderson Power Products, Inc.

CONN PLUG 2POS IN-LINE CRIMP

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONN PLUG 2POS IN-LINE CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Non-Gendered Connector Crimp Free Hanging (In-Line)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	6325G1	- Series

	-	-
Accessory Type	-	Polarizing Device (Key, Plug, Post)
Color	Gray	Gray
Connector Style	2 Poles	2 Poles
Connector Type	Non-Gendered	Non-Gendered
Contact Finish	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	175 A	175 A
Fastening Type	Spring Retention	Spring Retention
For Use With/Related Products	-	A Series™
Kit Type	-	Rectangular - Housings, Contacts, Retaining Clips, Retaining Pins, Zip Cable Straps
Material - Insulation	Polycarbonate	Polycarbonate
Material - Insulation	PC	PC
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-20 C	-20 C
Termination	Crimp	Crimp
Values	-	2 Contacts, 1 Retaining Clip, 2 Zip Cable Straps, 2 Retaing Pins, 2 Housings
Voltage Rating	600 V	600 V
Wire Gauge	44 AWG	2 - 44 AWG

SBE320/SBX350 AUX.CNT.KIT-1331 ROHS COMPLIANT: YES

Part	Values	Kit Type	Number of Rows	Contact Material	Voltage Rating	Connector Style	Material - Insulation	Material - Insulation	Fastening Type	Connector Type	Current Rating (Amps)	Number of Positions	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Color	Contact Finish	Accessory Type	For Use With/Related Products
Anderson Power Products, Inc. 6305G1	1 Retaining Clip, 2 Contacts, 2 Housings, 2 Retaing Pins, 2 Zip Cable Straps	Rectangular - Housings, Contacts, Retaining Clips, Retaining Pins, Zip Cable Straps
Anderson Power Products, Inc. CH324
Anderson Power Products, Inc. CH330
Anderson Power Products, Inc. 6325G1			1	Copper Alloy	600 V	2 Poles	Polycarbonate	PC	Spring Retention	Non-Gendered	175 A	2	Free Hanging (In-Line)	Crimp	-20 C	105 ░C	44 AWG	Gray	Silver
Anderson Power Products, Inc. 80-17																				Polarizing Device (Key, Plug, Post)	A Series™
Anderson Power Products, Inc. 6325G5			1	Copper Alloy	600 V	2 Poles	Polycarbonate	PC	Spring Retention	Non-Gendered	175 A	2	Free Hanging (In-Line)	Crimp	-20 C	105 ░C	2 AWG	Gray	Silver
