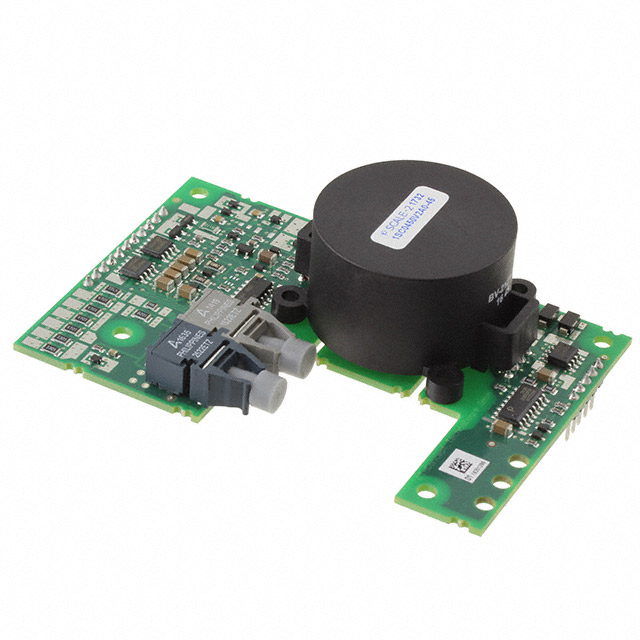

1SC0450V2A0-45

Active

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

Search across all available documentation for this part.

Active

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	12	$ 212.43

General part information

High-Side or Low-Side Gate Driver IC Module

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1SC0450V2A0-45	1SC0450 Series

Channel Type	Single	Single
Current - Peak Output (Source, Sink) [custom]	50 A	50 A
Current - Peak Output (Source, Sink) [custom]	50 A	50 A
Driven Configuration	High-Side, Low-Side	High-Side, Low-Side
Gate Type	IGBT	IGBT
High Side Voltage - Max (Bootstrap) [Max]	4500 V	4500 - 6500 V
Mounting Type	Surface Mount	Surface Mount
Number of Drivers	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Rise / Fall Time (Typ) [custom]	25 ns	25 ns
Rise / Fall Time (Typ) [custom]	30 ns	30 ns
Supplier Device Package	Module	Module
Voltage - Supply [Max]	15.5 V	15.5 V
Voltage - Supply [Min]	14.5 V	14.5 V

IC GATE DRVR HI/LOW SIDE MODULE

Part	Mounting Type	Gate Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Package / Case	Driven Configuration	High Side Voltage - Max (Bootstrap) [Max]	Channel Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Drivers
Power Integrations 1SC0450E2A0-45	Surface Mount	IGBT	50 A	50 A	Module	High-Side, Low-Side	4500 V	Single	85 °C	-40 °C	Module	25 ns	30 ns	14.5 V	15.5 V	1
Power Integrations 1SC0450V2A0-65	Surface Mount	IGBT	50 A	50 A	Module	High-Side, Low-Side	6500 V	Single	85 °C	-40 °C	Module	25 ns	30 ns	14.5 V	15.5 V	1
Power Integrations 1SC0450E2B0-65	Surface Mount	IGBT	50 A	50 A	Module	High-Side, Low-Side	6500 V	Single	85 °C	-40 °C	Module	25 ns	30 ns	14.5 V	15.5 V	1
Power Integrations 1SC0450V2B0-45	Surface Mount	IGBT	50 A	50 A	Module	High-Side, Low-Side	4500 V	Single	85 °C	-40 °C	Module	25 ns	30 ns	14.5 V	15.5 V	1
Power Integrations 1SC0450V2A0-45	Surface Mount	IGBT	50 A	50 A	Module	High-Side, Low-Side	4500 V	Single	85 °C	-40 °C	Module	25 ns	30 ns	14.5 V	15.5 V	1
Power Integrations 1SC0450V2B0-65	Surface Mount	IGBT	50 A	50 A	Module	High-Side, Low-Side	6500 V	Single	85 °C	-40 °C	Module	25 ns	30 ns	14.5 V	15.5 V	1
