1988943
ActivePhoenix Contact

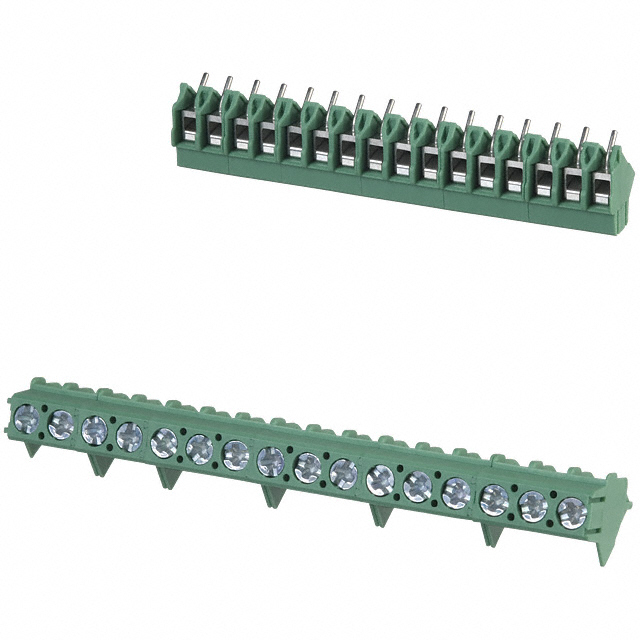

TERM BLOCK 16POS 45DEG 5MM PCB
1988943
ActivePhoenix Contact
TERM BLOCK 16POS 45DEG 5MM PCB
Description
General part information
1988943
16 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1988943 |
|---|---|
| Color | Green |
| Current | 15 A |
| Features | Interlocking (Side) |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 16 |
| Screw Thread | M2.6 |
| Torque - Screw (Maximum) | 0.4 Nm |
| Torque - Screw (Minimum) | 0.35 Nm |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Screw |
