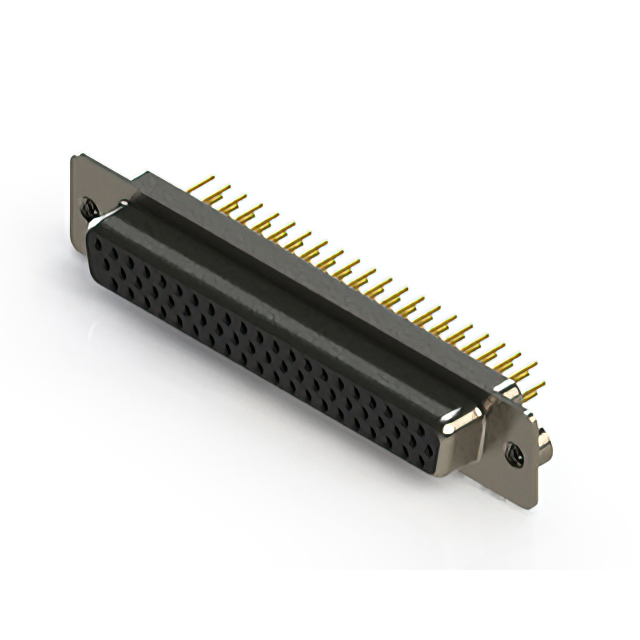

638-M62-330-BN2

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 62 CONTACT(S), FEMALE, 0.09 INCH PITCH, SOLDER TERMINAL, #4-40 UNC, RECEPTACLE,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

638-M62-330-BN2

Active

EDAC Inc.

D SUBMINIATURE CONNECTOR, 62 CONTACT(S), FEMALE, 0.09 INCH PITCH, SOLDER TERMINAL, #4-40 UNC, RECEPTACLE,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	638-M62-330-BN2

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

638-M62 Series

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type	Contact Finish	Material Flammability Rating	Contact Type	Contact Finish Thickness	Connector Style	Current Rating (Amps)	Shell Size, Connector Layout	Contact Material	Number of Rows	Connector Type	Flange Feature	Features	Dielectric Material	Shell Material, Finish	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 638-M62-232-BN4	62	-55 °C	125 °C	Black	Free Hanging (In-Line)	Gold	UL94 V-0	Signal	Flash	D-Sub High Density	5 A	4	Copper Alloy	3	Receptacle Female Sockets	4-40	Shielded	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel
EDAC Inc. 638-M62-630-BT6	62	-55 °C	125 °C	Black	Through Hole	Gold	UL94 V-0	Signal		D-Sub High Density	5 A	4	Copper Alloy	3	Receptacle Female Sockets	4-40	Board Lock Shielded	Polyamide (PA9T) Nylon 9T		Solder	0.76 Ám	30 Áin
EDAC Inc. 638-M62-230-BT4	62	-55 °C	125 °C	Black	Through Hole	Gold	UL94 V-0	Signal	Flash	D-Sub High Density	5 A	4	Copper Alloy	3	Receptacle Female Sockets	4-40	Shielded	Polyamide (PA9T) Nylon 9T		Solder
EDAC Inc. 638-M62-330-BT3	62	-55 °C	125 °C	Black	Through Hole	Gold	UL94 V-0	Signal		D-Sub High Density	5 A	4	Copper Alloy	3	Receptacle Female Sockets	4-40 Board Side	Shielded	Polyamide (PA9T) Nylon 9T		Solder	0.38 µm	15 µin
EDAC Inc. 638-M62-230-BT1	62	-55 °C	125 °C	Black	Through Hole	Gold	UL94 V-0	Signal	Flash	D-Sub High Density	5 A	4	Copper Alloy	3	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Shielded	Polyamide (PA9T) Nylon 9T		Solder
EDAC Inc. 638-M62-330-BN6	62	-55 °C	125 °C	Black	Through Hole	Gold	UL94 V-0	Signal		D-Sub High Density	5 A	4	Copper Alloy	3	Receptacle Female Sockets	4-40	Board Lock Shielded	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	Solder	0.38 µm	15 µin
EDAC Inc. 638-M62-632-BT1	62	-55 °C	125 °C	Black	Free Hanging (In-Line)	Gold	UL94 V-0	Signal		D-Sub High Density	5 A	4	Copper Alloy	3	Receptacle Female Sockets	Housing/Shell (Unthreaded)	Shielded	Polyamide (PA9T) Nylon 9T			0.76 Ám	30 Áin
EDAC Inc. 638-M62-330-BN4	62	-55 °C	125 °C	Black	Through Hole	Gold	UL94 V-0	Signal		D-Sub High Density	5 A	4	Copper Alloy	3	Receptacle Female Sockets	4-40	Shielded	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	Solder	0.38 µm	15 µin
EDAC Inc. 638-M62-330-BN2	62	-55 °C	125 °C	Black	Through Hole	Gold	UL94 V-0	Signal		D-Sub High Density	5 A	4	Copper Alloy	3	Receptacle Female Sockets	Housing/Shell (4-40)	Shielded	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	Solder	0.38 µm	15 µin
EDAC Inc. 638-M62-230-BN6	62	-55 °C	125 °C	Black	Through Hole	Gold	UL94 V-0	Signal	Flash	D-Sub High Density	5 A	4	Copper Alloy	3	Receptacle Female Sockets	4-40	Board Lock Shielded	Polyamide (PA9T) Nylon 9T	Nickel Plated Steel	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 17.41

Description

General part information

638-M62 Series

62 Position D-Sub, High Density Receptacle, Female Sockets Connector
