1217917-2
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 14-18AWG 0.250
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217917-2
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 14-18AWG 0.250
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217917-2 |
|---|---|
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 0.17 in |
| Insulation Diameter [Max] | 4.32 mm |
| Insulation Diameter [Min] | 0.12 in |
| Insulation Diameter [Min] | 3.05 mm |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 7.75 mm |
| Tab Length | 0.305 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.19 | |
| Tape & Reel (TR) | 110000 | $ 0.06 | ||
1217917 Series
CONN QC RCPT 14-18AWG 0.250
| Part | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Termination | Mounting Type | Terminal Type | Contact Material | Insulation | Gender | Tab Thickness | Tab Thickness | Tab Length | Tab Length | Wire Gauge [Min] | Wire Gauge [Max] | Tab Width | Tab Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217917-2 | 0.12 in | 0.17 in | 4.32 mm | 3.05 mm | Crimp | Free Hanging (In-Line) | Standard | Brass | Non-Insulated | Female | 0.032 in | 0.81 mm | 7.75 mm | 0.305 in | 14 AWG | 18 AWG | 6.35 mm | 0.25 in |
Description
General part information
1217917 Series

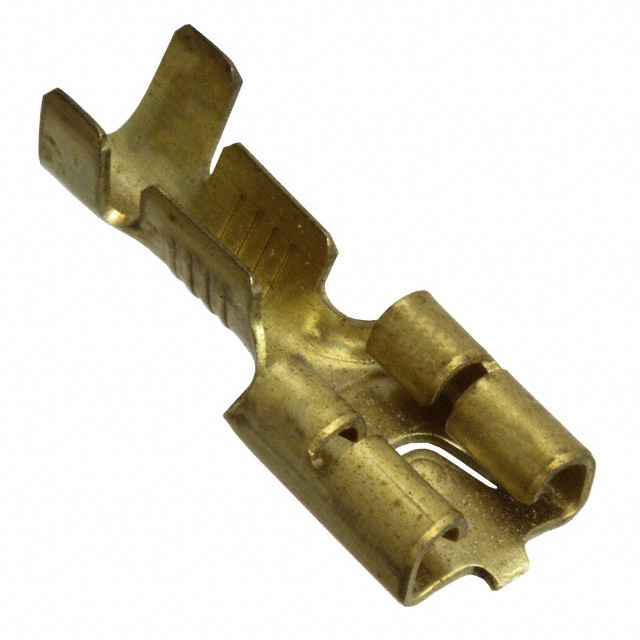

0.250" (6.35mm) Quick Connect Female 14-18 AWG Crimp Connector Non-Insulated
