W6280-6PG-P-528
ActiveConxall/Switchcraft

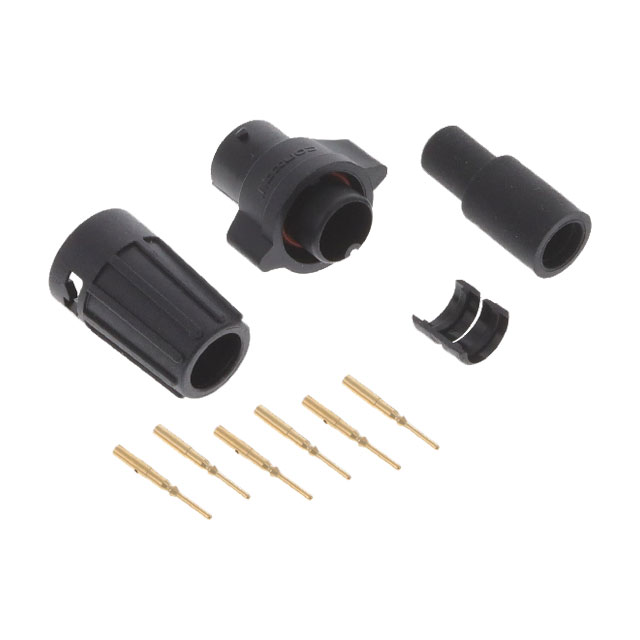

CONN PLUG MALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W6280-6PG-P-528
ActiveConxall/Switchcraft
CONN PLUG MALE 6POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | W6280-6PG-P-528 | W6280-6 Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening | - | 2.29 mm |
| Cable Opening | - | 0.09 - 0.14 in |
| Cable Opening | - | 3.56 mm |
| Cable Opening [custom] | 6.6 mm, 7.11 mm | 6.6 - 7.11 mm |
| Cable Opening [custom] | 0.28 in, 0.26 in | 0.26 - 0.28 in |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, UV Resistant, Backshell | Coupling Nut, UV Resistant, Backshell |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 300 VAC | 300 VAC |
W6280-6 Series
CONN PLUG MALE 6POS GOLD CRIMP
| Part | Voltage Rating | Color | Contact Material | Mounting Type | Fastening Type | Orientation | Connector Type | Primary Material | Contact Finish - Mating | Termination | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Number of Positions | Ingress Protection | Insert Material | Features | Applications | Backshell Material, Plating | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft W6280-6PG-P-3DC | 300 VAC | Black | Copper Alloy | Free Hanging (In-Line) | Bayonet Lock | Keyed | Male Pins, Plug | Plastic | Gold | Crimp | Unshielded | 85 °C | -40 °C | Varies by Wire Gauge | 6 | IP66, IP67, IP68 | Thermoplastic | Backshell, Coupling Nut, UV Resistant | Automotive, Communication Systems, Instrumentation | Thermoplastic | |||||
Conxall/Switchcraft W6280-6PG-P-311 | 300 VAC | Black | Copper Alloy | Free Hanging (In-Line) | Bayonet Lock | Keyed | Male Pins, Plug | Plastic | Gold | Crimp | Unshielded | 85 °C | -40 °C | Varies by Wire Gauge | 6 | IP66, IP67, IP68 | Thermoplastic | Backshell, Coupling Nut, UV Resistant | Automotive, Communication Systems, Instrumentation | Thermoplastic | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm | ||
Conxall/Switchcraft W6280-6PG-P-528 | 300 VAC | Black | Copper Alloy | Free Hanging (In-Line) | Bayonet Lock | Keyed | Male Pins, Plug | Plastic | Gold | Crimp | Unshielded | 85 °C | -40 °C | Varies by Wire Gauge | 6 | IP66, IP67, IP68 | Thermoplastic | Backshell, Coupling Nut, UV Resistant | Automotive, Communication Systems, Instrumentation | Thermoplastic | 6.6 mm, 7.11 mm | 0.26 in, 0.28 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.18 | |
| 10 | $ 14.03 | |||
| 25 | $ 13.29 | |||
| 50 | $ 13.10 | |||
| 100 | $ 11.56 | |||
| 250 | $ 10.79 | |||
| 500 | $ 10.56 | |||
Description
General part information
W6280-6 Series
6 Position Circular Connector Plug, Male Pins Crimp
Documents
Technical documentation and resources
