2966540
ActivePhoenix Contact

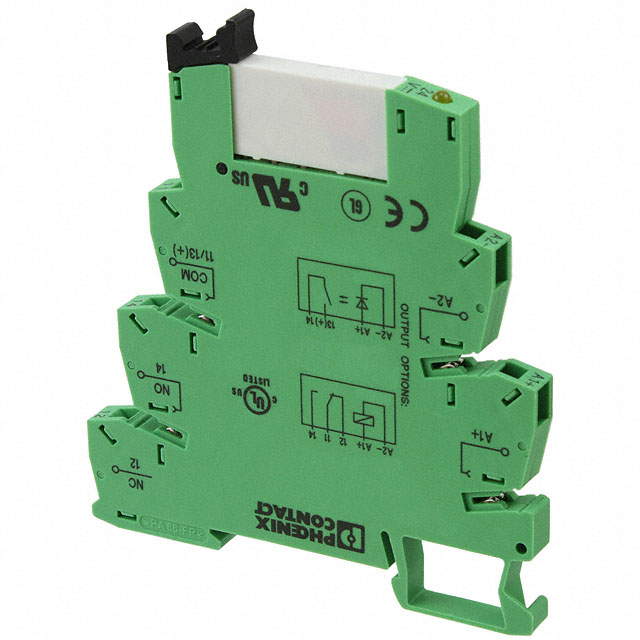

RELAY GEN PURPOSE SPDT 50MA 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2966540
ActivePhoenix Contact
RELAY GEN PURPOSE SPDT 50MA 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2966540 | 29665 Series |
|---|---|---|
| Coil Current | 9 mA | 3.2 - 15.3 mA |
| Coil Resistance | 2.67 kOhms | 2.182 - 5217 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 24 VDC | 12 - 230 VAC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver (Ag), Gold (Au) | Silver Tin Oxide (AgSnO), Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 50 mA | 6 - 50 A |
| Features | Lighted Indicator, Socket Included | Lighted Indicator, Socket Included, Diode |
| Mounting Type | DIN Rail | DIN Rail |
| Operate Time | 5 ms | 5 - 7 ms |
| Operating Temperature [Max] | 60 °C | 55 - 60 °C |
| Operating Temperature [Min] | -25 °C | -40 - -25 °C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 8 ms | 8 - 15 ms |
| Switching Voltage | 36 VDC, 30 VAC | 30 - 250 VAC |
| Termination Style | Spring Terminal | Spring Terminal |
29665 Series
RELAY GEN PURPOSE SPDT 6A 120V
| Part | Contact Form | Coil Current | Relay Type | Coil Voltage | Termination Style | Contact Material | Coil Resistance | Switching Voltage | Mounting Type | Contact Rating (Current) | Release Time | Coil Type | Operate Time | Features | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2966524 | SPDT (1 Form C) | 3.5 mA | General Purpose | 120 VAC, 120 VDC | Spring Terminal | Silver Tin Oxide (AgSnO) | 34.29 kOhms | 250 VAC, 250 VDC | DIN Rail | 6 A | 15 ms | Non Latching | 6 ms | Lighted Indicator, Socket Included | 55 °C | -25 °C |
Phoenix Contact 2966540 | SPDT (1 Form C) | 9 mA | General Purpose | 24 VDC | Spring Terminal | Gold (Au), Silver (Ag) | 2.67 kOhms | 30 VAC, 36 VDC | DIN Rail | 50 mA | 8 ms | Non Latching | 5 ms | Lighted Indicator, Socket Included | 60 °C | -25 °C |
Phoenix Contact 2966566 | SPDT (1 Form C) | 9.2 mA | General Purpose | 48 VDC | Spring Terminal | Gold (Au), Silver (Ag) | 5217 Ohms | 30 VAC, 36 VDC | DIN Rail | 50 mA | 8 ms | Non Latching | 5 ms | Lighted Indicator, Socket Included | 60 °C | -25 °C |
Phoenix Contact 2966582 | SPDT (1 Form C) | 3.5 mA | General Purpose | 120 VAC, 120 VDC | Spring Terminal | Gold (Au), Silver (Ag) | 34.29 kOhms | 30 VAC, 36 VDC | DIN Rail | 50 mA | 15 ms | Non Latching | 6 ms | Lighted Indicator, Socket Included | 55 °C | -25 °C |
Phoenix Contact 2966553 | SPDT (1 Form C) | 11 mA | General Purpose | 24 VAC | Spring Terminal | Gold (Au), Silver Tin Oxide (AgSnO) | 2.182 kOhms | 250 VAC, 250 VDC | DIN Rail | 6 A | 15 ms | Non Latching | 6 ms | Lighted Indicator, Socket Included | 60 °C | -40 °C |
Phoenix Contact 2966537 | SPDT (1 Form C) | 3.2 mA | General Purpose | 230 VAC | Spring Terminal | Silver Tin Oxide (AgSnO) | 71.86 kOhms | 250 VAC, 250 VDC | DIN Rail | 6 A | 15 ms | Non Latching | 7 ms | Lighted Indicator, Socket Included | 55 °C | -25 °C |
Phoenix Contact 2966579 | SPDT (1 Form C) | 15.3 mA | General Purpose | 12 VDC | Spring Terminal | Gold (Au), Silver Tin Oxide (AgSnO) | 784 Ohms | 30 VAC, 36 VDC | DIN Rail | 50 mA | 8 ms | Non Latching | 5 ms | Diode, Lighted Indicator, Socket Included | 60 °C | -40 °C |
Phoenix Contact 2966511 | SPDT (1 Form C) | General Purpose | 60 VDC | Spring Terminal | Silver Tin Oxide (AgSnO) | 12.5 kOhms | 250 VAC, 250 VDC | DIN Rail | 6 A | 8 ms | Non Latching | 5 ms | Diode, Lighted Indicator | 60 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
29665 Series
General Purpose Relay SPDT (1 Form C) DIN Rail
