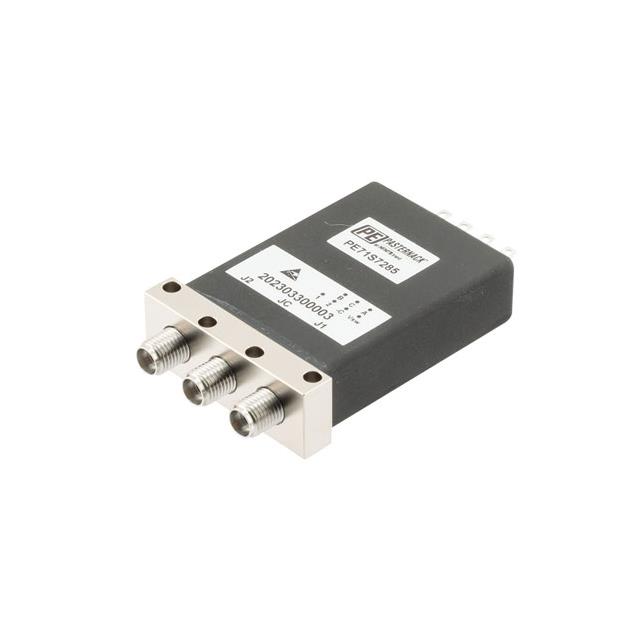

PE71S7285
ActivePasternack
SPDT, ELECTROMECHANICAL RELAY LA
PE71S7285
ActivePasternack
SPDT, ELECTROMECHANICAL RELAY LA
Description
General part information
PE71S7285
RF Switch IC SATCOM SPDT 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | PE71S7285 |
|---|---|
| Circuit | SPDT |
| Frequency Range (Low) | DC |
| Frequency Range (Max) | 43 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.6 dB |
| Isolation | 85 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -25 °C |
| RF Type | SATCOM |
| Test Frequency | 43 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 26 V |
