GLF2351A-S3G7
ActiveGLF Integrated Power
PROGRAMMABLE OCP POWER SWITCH, I
GLF2351A-S3G7
ActiveGLF Integrated Power
PROGRAMMABLE OCP POWER SWITCH, I
Description
General part information
GLF2351A-S3G7

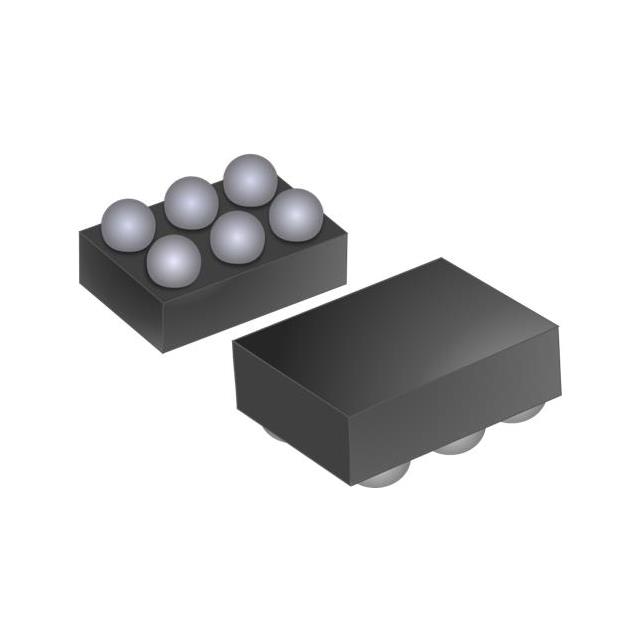

Power Switch/Driver 1:1 P-Channel 2.5A 6-WLCSP (0.97x1.47)
Technical Specifications
Parameters and characteristics for this part
| Specification | GLF2351A-S3G7 |
|---|---|
| Current - Output (Max) | 2.5 A |
| Fault Protection | Reverse Current, Over Temperature, Current Limiting (Fixed), UVLO |
| Features | Slew Rate Controlled, Status Flag, Load Discharge |
| Input Ratio | 1 |
| Input Type | Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | High Side |
| Output Ratio | 1 |
| Output Type | P-Channel |
| Package / Case | WLCSP, 6-UFBGA |
| Package Length | 0.97 mm |
| Package Name | 6-WLCSP |
| Package Width | 1.47 mm |
| Rds On (Typ) | 32 mOhm |
| Switch Type | General Purpose |
| Voltage - Load (Max) | 5.5 V |
| Voltage - Load (Min) | 2.5 V |
| Voltage - Supply (Vcc/Vdd) Maximum | 5.5 V |
| Voltage - Supply (Vcc/Vdd) Minimum | 2.5 V |
