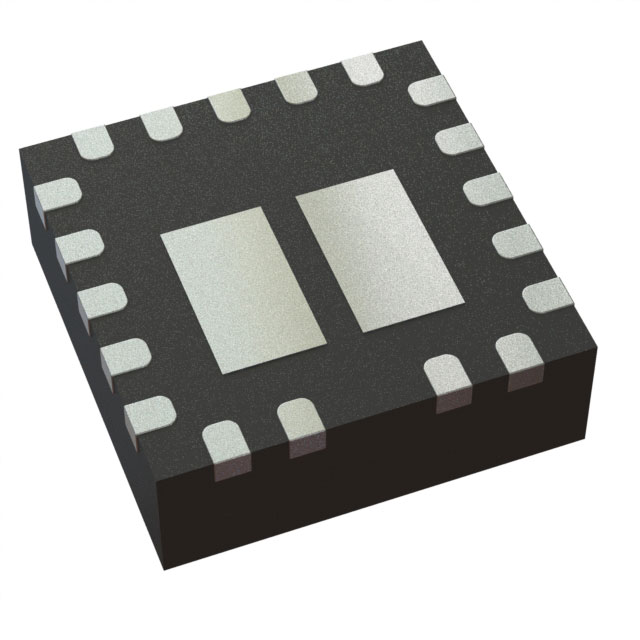

UCS3205T-E/Q8A
ActiveMicrochip Technology
22V 5A CURRENT MEASURING BI-DIRECTIONAL LOAD SWITCH 19 VQFN 3X3X0.9MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UCS3205T-E/Q8A
ActiveMicrochip Technology
22V 5A CURRENT MEASURING BI-DIRECTIONAL LOAD SWITCH 19 VQFN 3X3X0.9MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UCS3205T-E/Q8A | UCS3205 Series |
|---|---|---|
| - | - | |
| Current - Output (Max) [Max] | 5 A | 5 A |
| Fault Protection | Over Temperature, UVLO, Current Limiting (Fixed) | Over Temperature, UVLO, Current Limiting (Fixed) |
| Features | Slew Rate Controlled | Slew Rate Controlled |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | On/Off | On/Off |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | N-Channel | N-Channel |
| Package / Case | 19 Leads | 19 Leads |
| Package / Case | 20-VFQFN, Exposed Pad | 20-VFQFN, Exposed Pad |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 30 mOhm | 30 mOhm |
| Supplier Device Package | 19-VQFN (3x3) | 19-VQFN (3x3) |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load [Max] | 22 V | 22 V |
| Voltage - Load [Min] | 2.85 V | 2.85 V |
| Voltage - Supply (Vcc/Vdd) | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
UCS3205 Series
22V 5A CURRENT MEASURING BI-DIRECTIONAL LOAD SWITCH 19 VQFN 3X3X0.9MM T/R ROHS COMPLIANT: YES
| Part | Supplier Device Package | Package / Case | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Interface | Mounting Type | Fault Protection | Voltage - Load [Max] | Voltage - Load [Min] | Current - Output (Max) [Max] | Input Type | Voltage - Supply (Vcc/Vdd) | Switch Type | Number of Outputs | Features | Rds On (Typ) | Ratio - Input:Output [custom] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology UCS3205T-E/Q8A | |||||||||||||||||||
Microchip Technology UCS3205T-E/Q8A | 19-VQFN (3x3) | 19 Leads | 20-VFQFN, Exposed Pad | -40 °C | 125 ¯C | On/Off | Surface Mount | Current Limiting (Fixed), Over Temperature, UVLO | 22 V | 2.85 V | 5 A | Non-Inverting | General Purpose | 1 | Slew Rate Controlled | 30 mOhm | 1:1 | N-Channel | |
Microchip Technology UCS3205-E/Q8A | |||||||||||||||||||
Microchip Technology UCS3205-E/Q8A | |||||||||||||||||||
Microchip Technology UCS3205-E/Q8A | 19-VQFN (3x3) | 19 Leads | 20-VFQFN, Exposed Pad | -40 °C | 125 ¯C | On/Off | Surface Mount | Current Limiting (Fixed), Over Temperature, UVLO | 22 V | 2.85 V | 5 A | Non-Inverting | General Purpose | 1 | Slew Rate Controlled | 30 mOhm | 1:1 | N-Channel |
Description
General part information
UCS3205 Series
Power Switch/Driver 1:1 N-Channel 5A 19-VQFN (3x3)
