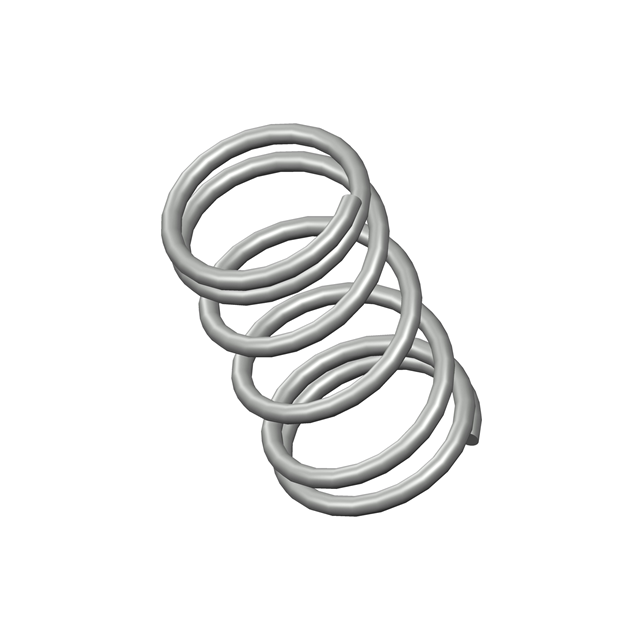

10139CS
ActiveCentury Spring Corp
COMP O= .703,L= 1.31,W= .067
10139CS
ActiveCentury Spring Corp
COMP O= .703,L= 1.31,W= .067
Description
General part information
10139CS
COMP O= .703,L= 1.31,W= .067
Technical Specifications
Parameters and characteristics for this part
| Specification | 10139CS |
|---|---|
| Diameter - Inside | 0.569 in |
| Diameter - Outside | 0.703 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 1.31 in |
| Material | Spring Steel |
| Rate (lbs/in) | 28 lbs/in |
| Type | Compression |
| Wire Diameter | 0.067 in |
