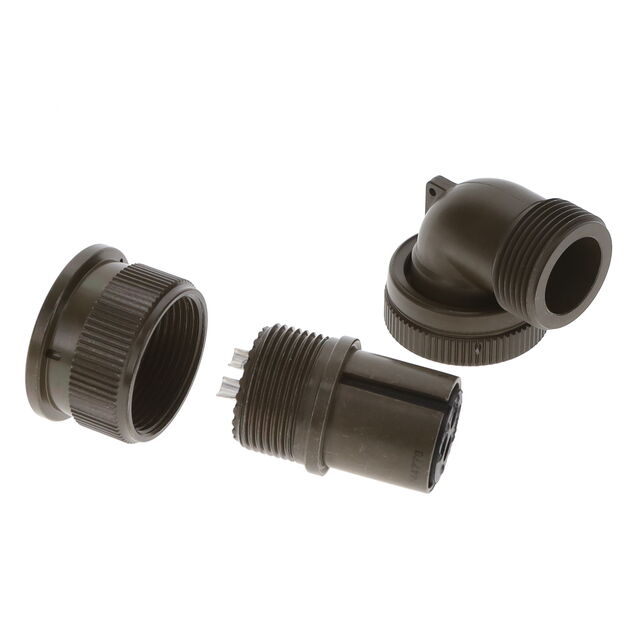

MS3108A16-10S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108A16-10S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108A16-10S | MS3108A16 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 23 A | 13 - 23 A |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-5015 | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 16-10 | 16-10, 16S-5 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 72.20 | |
| 10 | $ 66.25 | |||
| 25 | $ 63.71 | |||
| 50 | $ 61.58 | |||
| 100 | $ 58.18 | |||
MS3108A16 Series
PLUG
| Part | Shell Material | Mounting Type | Orientation | Contact Material | Insert Material | Current Rating (Amps) | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Finish - Mating | Qualification | Connector Type | Applications | Shell Size - Insert | Grade | Ingress Protection | Shielding | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108A16-2S | |||||||||||||||||||
Amphenol Industrial Operations MS3108A16-10S | Aluminum Alloy | Free Hanging (In-Line), Right Angle | N | Copper Alloy | Neoprene | 23 A | Olive Drab Chromate over Cadmium | -55 °C | 125 °C | Olive Drab | Silver | MIL-DTL-5015 | Female Sockets, Plug | Marine, Military | 16-10 | Military | Environment Resistant | Unshielded | Metal |
Amphenol Industrial Operations MS3108A16-13SX | |||||||||||||||||||
Amphenol Industrial Operations MS3108A16-10P | |||||||||||||||||||
Amphenol Industrial Operations MS3108A16-13SW | |||||||||||||||||||
Amphenol Industrial Operations MS3108A16S-8S | |||||||||||||||||||
Amphenol Industrial Operations MS3108A16S-16S | |||||||||||||||||||
Amphenol Industrial Operations MS3108A16-13P | |||||||||||||||||||
Amphenol Industrial Operations MS3108A16-12S | |||||||||||||||||||
Amphenol Industrial Operations MS3108A16S-5S |
Description
General part information
MS3108A16 Series
3 Position Circular Connector Plug, Female Sockets Solder Cup
