A201606LP

Active

Hoffman Enclosures, Inc.

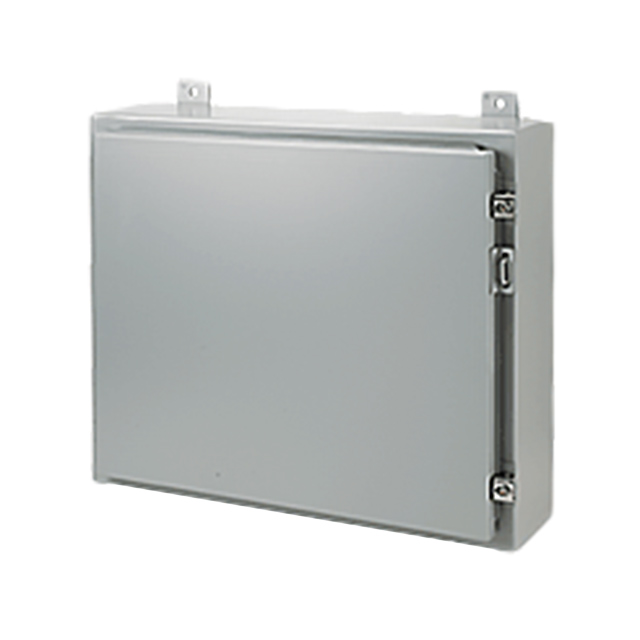

JUNCTION BOX STEEL 20"L X 16"W

Search across all available documentation for this part.

Active

Hoffman Enclosures, Inc.

JUNCTION BOX STEEL 20"L X 16"W

Technical Specifications

Parameters and characteristics for this part

JUNCTION BOX STEEL 20"L X 16"W

Part	Thickness	Container Type	Features	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Ratings	Material	Weight	Weight	Color	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Hoffman Enclosures, Inc. A201606LP	16 Gauge	Junction Box	Sealing Gasket, Wall Mount	320 in²	2065 cm˛	5.984 in	152 mm	IP65, NEMA 12, NEMA 13, UL-508A	Metal, Steel	12.2 kg	27 lbs	Gray	Hinged Door, Lid	508 mm	406 mm	20 "	15.984 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Junction Box Metal, Steel Gray Hinged Door, Lid 20.000" L x 15.984" W (508.00mm x 406.00mm) X 5.984" (152.00mm)
