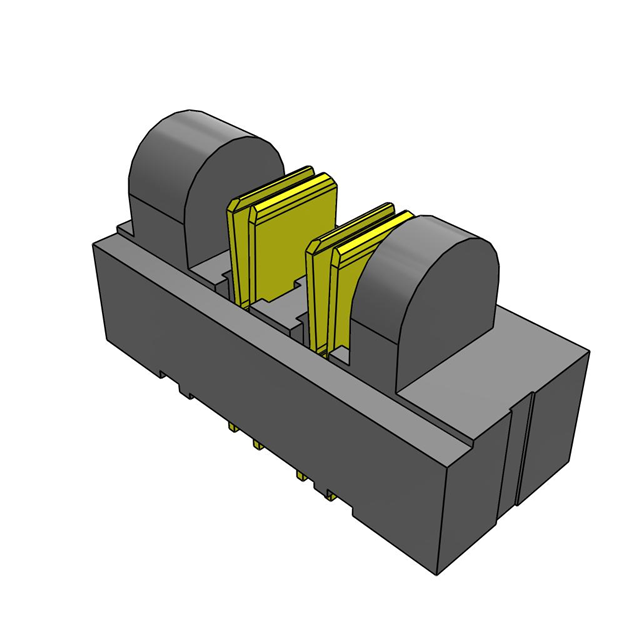

FMPT-02-01-L-S-V-LC - FMPT-02-01-L-S-V-LC

FMPT-02-01-L-S-V-LC

Active
Samtec Inc.

CONN HDR 2POS 5.00MM PCB SLDR

Deep-Dive with AI

DocumentsFMPT DatasheetFMPT Series Other Related Documents 01+1

Technical Specifications

Parameters and characteristics for this part

SpecificationFMPT-02-01-L-S-V-LC
ColorBlack
Connector TypeMale Blades, Header
Contact FinishGold
Contact Finish Thickness10 Áin
Contact Finish Thickness0.25 Ám
Contact MaterialCopper Alloy
Current Rating (Amps)30 A
Material - InsulationLiquid Crystal Polymer (LCP)
Mounting TypeThrough Hole
Number of Positions2
Number of Rows1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch [x]5 mm
Pitch [x]0.197 in
TerminationSolder
Voltage Rating742 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 110$ 5.30

Description

General part information

FMPT-02 Series

2 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole
