103A0-C200-00

Active

CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 100 POSITION CONNECTORS, 180°, ZINC ALLOY BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

103A0-C200-00

Active

CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 100 POSITION CONNECTORS, 180°, ZINC ALLOY BODY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	103A0-C200-00	103A0 Series

Accessory Type	Two Piece Backshell	Two Piece Backshell
Cable Exit	180 °	60 - 180 °
Cable Type	Round	Round, Flat
Color	Silver	Silver
Features	Latch Lock	Latch Lock, Mating Screws 4-40
Hardware	-	Assembly Hardware, Gasket
Material	Zinc Alloy	Zinc Alloy, Metal, Metal, Zinc
Number of Positions	100	100
Plating	Nickel	Nickel
Primary Material	Metal	Metal
Shielding	Shielded	Shielded

103A0 Series

CONNECTOR BACKSHELL, JUNCTION BACKSHELL, 100 POSITION CONNECTORS, 60°, ZINC ALLOY BODY

Part	Material	Features	Cable Exit	Number of Positions	Cable Type	Shielding	Plating	Color	Primary Material	Accessory Type	Hardware
3M 103A0-C500-00	Zinc Alloy	Latch Lock	60 °	100	Round	Shielded	Nickel	Silver	Metal	Two Piece Backshell
3M 103A0-A200-00	Metal, Zinc Alloy	Latch Lock	180 °	100	Round	Shielded	Nickel	Silver	Metal	Two Piece Backshell
3M 103A0-C200-00	Zinc Alloy	Latch Lock	180 °	100	Round	Shielded	Nickel	Silver	Metal	Two Piece Backshell
3M 103A0-12R1-00	Metal, Zinc	Mating Screws 4-40	180 °	100	Flat	Shielded	Nickel	Silver	Metal	Two Piece Backshell	Assembly Hardware, Gasket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.35
		10	$ 11.57
		25	$ 11.19
Newark	Each	100	$ 18.91
		250	$ 17.19
		500	$ 16.11
		1000	$ 14.84

Description

General part information

103A0 Series

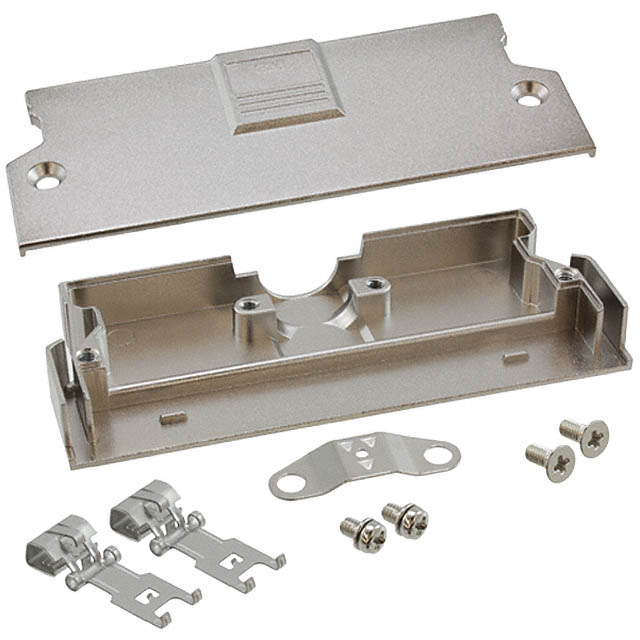

The 103 series Metal Junction Shell made of zinc alloy with nickel plated finish. It comes with the rugged two-piece die-cast metal shells with round straight exit. The reliable metal strain-relief clamp provides grounding for cable shield. It is compatible with 101XX-6000 EC plug and suitable for round cable.
