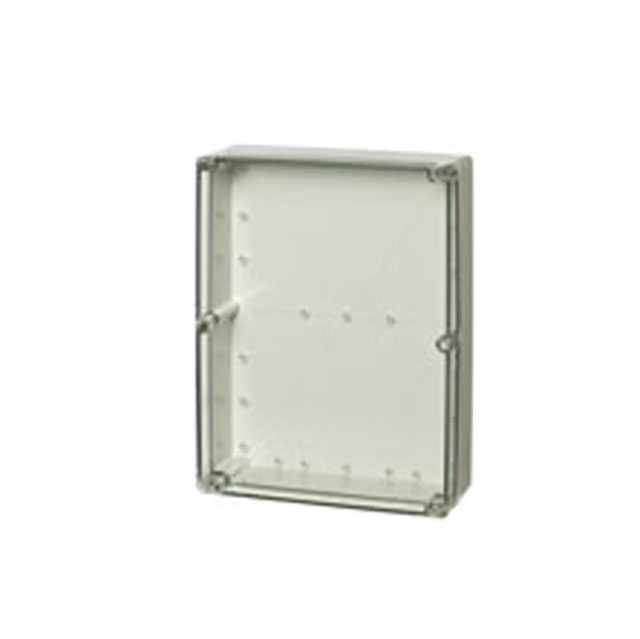

UL PCT 162509

Active

FIBOX Enclosures

BOX PLASTIC 9.8"L X 6.3"W

Search across all available documentation for this part.

Active

FIBOX Enclosures

BOX PLASTIC 9.8"L X 6.3"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UL PCT 162509	UL PCT 16 Series

Area (L x W)	61.7 in˛	61.7 in˛
Area (L x W)	398 cm˛	398 cm˛
Color	Gray, Clear Cover/Door	Gray, Clear Cover/Door
Container Type	Box	Box
Design	Cover Included	Cover Included
Height [z]	88.9 mm	88.9 - 124.46 mm
Height [z]	3.5 in	3.5 - 124.46 in
Material	Plastic, Polycarbonate	Plastic, Polycarbonate
Ratings	IP67, IP66, NEMA 4, NEMA 12, NEMA 4X, NEMA 1, UL 508, NEMA 13	IP67, IP66, NEMA 4, NEMA 12, NEMA 4X, NEMA 1, UL 508, NEMA 13
Size / Dimension [x]	9.8 "	9.8 "
Size / Dimension [x]	248.92 mm	248.92 mm
Size / Dimension [y]	6.3 "	6.3 "
Size / Dimension [y]	160.02 mm	160.02 mm

BOX PLASTIC 9.8"L X 6.3"W

Part	Container Type	Design	Material	Ratings	Color	Area (L x W)	Area (L x W)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height [z]	Height [z]
FIBOX Enclosures UL PCT 162509	Box	Cover Included	Plastic, Polycarbonate	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	Clear Cover/Door, Gray	61.7 in˛	398 cm˛	9.8 "	248.92 mm	6.3 "	160.02 mm	88.9 mm	3.5 in
FIBOX Enclosures UL PCT 162513	Box	Cover Included	Plastic, Polycarbonate	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	Clear Cover/Door, Gray	61.7 in˛	398 cm˛	9.8 "	248.92 mm	6.3 "	160.02 mm	124.46 mm	124.46 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 108.92

General part information

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included 9.800" L x 6.300" W (248.92mm x 160.02mm) X 3.500" (88.90mm)

Technical documentation and resources

No documents available
