RBD-50-M-01
ActiveTE Connectivity Aerospace, Defense and Marine
CONN BNC PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RBD-50-M-01
ActiveTE Connectivity Aerospace, Defense and Marine
CONN BNC PLUG R/A 50 OHM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RBD-50-M-01 | RBD-50 Series |
|---|---|---|
| - | - | |
| Body Finish | Nickel | Nickel |
| Body Material | Brass | Brass |
| Cable Group | 400, 142, 141, RG-58, 303 | 400, 142, 141, RG-58, 303 |
| Center Contact Material | Brass | Brass |
| Center Contact Plating | Gold | Gold |
| Connector Style | BNC | BNC |
| Connector Type | Male Pin, Plug | Male Pin, Plug |
| Contact Termination | Solder | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz | 4 GHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 Ohms |

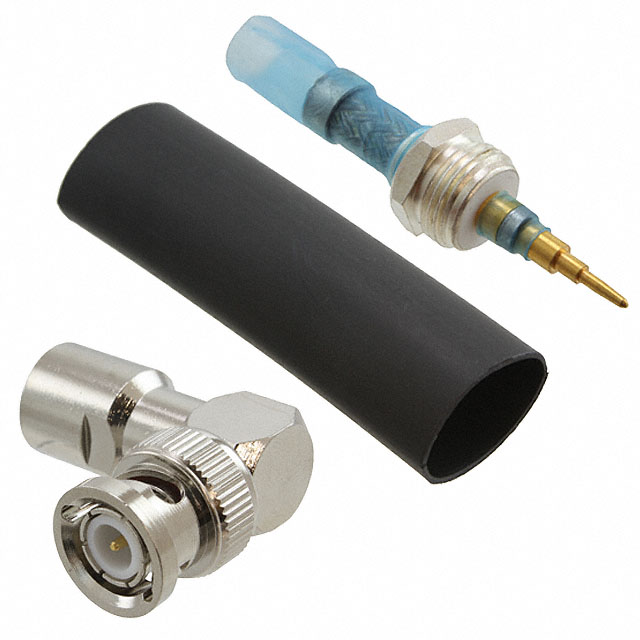

| Includes | 1 Contact, 1 Heat Shrink, 1 Connector | 1 Contact, 1 Heat Shrink, 1 Connector |
| Mating Cycles | 500 | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shield Termination | Solder | Solder |
| Voltage Rating | 500 V | 500 V |
RBD-50 Series
RBD-50-S-04
| Part | Fastening Type | Frequency - Max [Max] | Number of Ports | Voltage Rating | Mounting Type | Body Finish | Center Contact Plating | Center Contact Material | Housing Color | Dielectric Material | Connector Type | Shield Termination | Includes | Contact Termination | Cable Group | Body Material | Mating Cycles | Connector Style | Impedance | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine RBD-50-S-04 | |||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine RBD-50-L-01 | |||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine RBD-50-M-01 | Bayonet Lock | 4 GHz | 1 | 500 V | Free Hanging (In-Line), Right Angle | Nickel | Gold | Brass | Silver | Polytetrafluoroethylene (PTFE) | Male Pin, Plug | Solder | 1 Connector, 1 Contact, 1 Heat Shrink | Solder | 141, 142, 303, 400, RG-58 | Brass | 500 | BNC | 50 Ohms | 100 °C | -55 °C |
TE Connectivity Aerospace, Defense and Marine RBD-50-M-02 | |||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine RBD-50-P-00 | |||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine RBD-50-S-02 | |||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine RBD-50-P-03 | |||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine RBD-50-M-00CS2834 | |||||||||||||||||||||
TE Connectivity Aerospace, Defense and Marine RBD-50-S-00CS2834 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 44.40 | |
Description
General part information
RBD-50 Series
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
