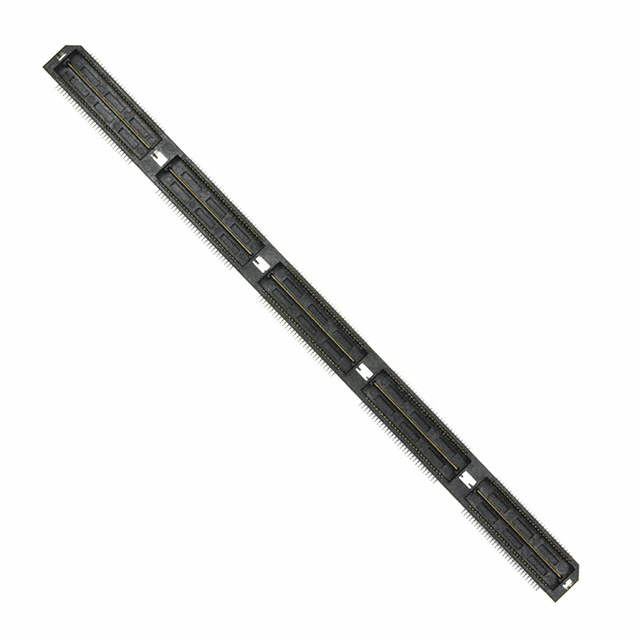

Specification	QTH-150-01-L-D-A

Connector Type	Outer Shroud Contacts, Header
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Features	Ground Bus (Plane), Board Guide
Height Above Board	0.16 in
Mated Stacking Height	5 mm
Mounting Type	Surface Mount
Number of Positions	300
Number of Rows	2
Pitch	0.02 in

QTH-150 Series

Part	Contact Finish Thickness	Contact Finish	Connector Type	Pitch	Features	Number of Rows	Height Above Board	Number of Positions	Mated Stacking Height	Mounting Type
Samtec Inc. QTH-150-03-L-D-LC-K	10 Ąin	Gold	Header Outer Shroud Contacts	0.02 in	Board Lock Ground Bus (Plane) Pick and Place	2	0.404 in	300	11 mm	Surface Mount
Samtec Inc. QTH-150-04-L-D-A-K	10 Ąin	Gold	Header Outer Shroud Contacts	0.02 in	Board Guide Ground Bus (Plane) Pick and Place	2	0.6 in	300	16 mm	Surface Mount
Samtec Inc. QTH-150-06-F-D-A	3 µin	Gold	Header Outer Shroud Contacts	0.02 in	Board Guide Ground Bus (Plane)	2	0.836 in	300	22 mm	Surface Mount
Samtec Inc. QTH-150-03-L-D-A	10 Ąin	Gold	Header Outer Shroud Contacts	0.02 in	Board Guide Ground Bus (Plane)	2	0.404 in	300	11 mm	Surface Mount
Samtec Inc. QTH-150-01-F-D-EM2	3 µin	Gold	Header Outer Shroud Contacts	0.02 in	Ground Bus (Plane)	2		300		Board Edge Straddle Mount
Samtec Inc. QTH-150-01-F-D-A-GP	3 µin	Gold	Header Outer Shroud Contacts	0.02 in	Board Guide Ground Bus (Plane) Mating Guide	2	0.16 in	300	5 mm	Surface Mount
Samtec Inc. QTH-150-03-F-D-A	3 µin	Gold	Header Outer Shroud Contacts	0.02 in	Board Guide Ground Bus (Plane)	2	0.404 in	300	11 mm	Surface Mount
Samtec Inc. QTH-150-01-F-D	3 µin	Gold	Header Outer Shroud Contacts	0.02 in	Ground Bus (Plane)	2	0.16 in	300	5 mm	Surface Mount
Samtec Inc. QTH-150-04-L-D-LC	10 Ąin	Gold	Header Outer Shroud Contacts	0.02 in	Board Lock Ground Bus (Plane)	2	0.6 in	300	16 mm	Surface Mount
Samtec Inc. QTH-150-02-L-D-A	10 Ąin	Gold	Header Outer Shroud Contacts	0.02 in	Board Guide Ground Bus (Plane)	2	0.286 in	300	8 mm	Surface Mount
