071923
ActiveBourns Inc.

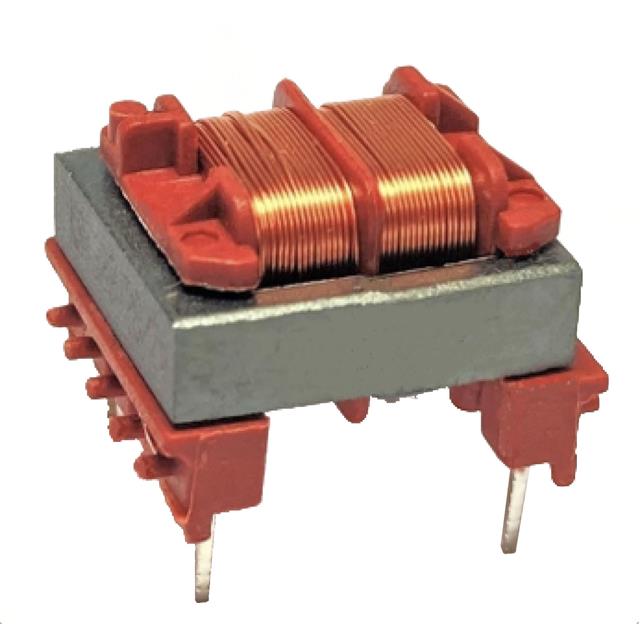

COMMON MODE CHOKES DUAL 22000UH 0.28A 3OHM DCR THRU-HOLE TRAY
071923
ActiveBourns Inc.
COMMON MODE CHOKES DUAL 22000UH 0.28A 3OHM DCR THRU-HOLE TRAY
Description
General part information
071923
2 Line Common Mode Choke Through Hole 280mA DCR 3Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | 071923 |
|---|---|
| Current Rating (Max) | 280 mA |
| DC Resistance (DCR) (Max) | 3 Ohm |
| Height (Max) | 0.413 in |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.61 in |
| Size / Dimension Width | 0.571 in |
