FMCA3160-48
ActiveFairview Microwave
CBL ASSY SHVPLUG-SHVPLUG 48
FMCA3160-48
ActiveFairview Microwave
CBL ASSY SHVPLUG-SHVPLUG 48
Description
General part information
FMCA3160-48

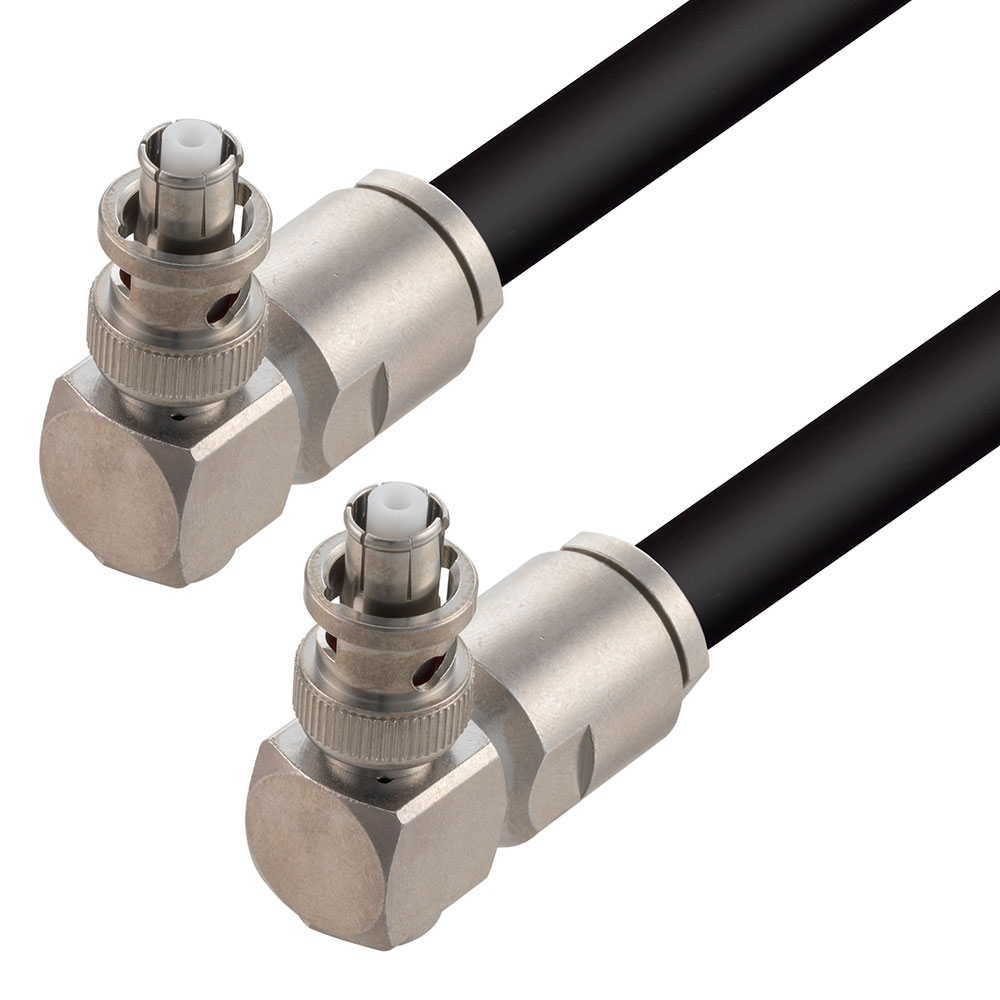

Cable Assembly Coaxial SHV to SHV RG-214 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA3160-48 |
|---|---|
| 1st Connector | SHV Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SHV Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 214 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 300 MHz |
| Length | 48 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | SHV |
