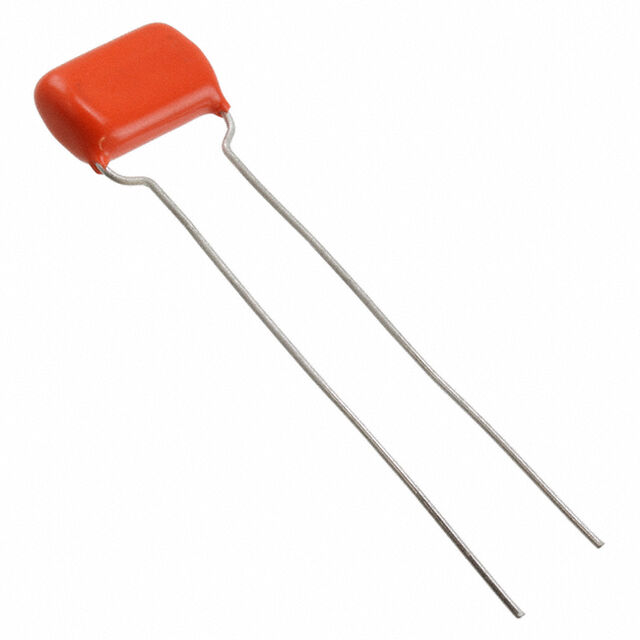

225P47392XD3
ActiveCornell Dubilier Knowles
CAP FILM 0.047UF 10% 200VDC RAD
225P47392XD3
ActiveCornell Dubilier Knowles
CAP FILM 0.047UF 10% 200VDC RAD
Description
General part information
225P47392XD3
0.047 µF Film Capacitor 140V 200V Polyester Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 225P47392XD3 |
|---|---|
| Applications | DC Filtering, DC Link, Audio |
| Capacitance | 47 nF |
| Dielectric Material | Polyester |
| Height - Seated (Max) | 0.61 in |
| Lead Spacing | 0.375 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.799 in |
| Size / Dimension Width | 0.28 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 140 V |
| Voltage Rating - DC | 200 V |
