PI3WVR628XBEX

Active

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

PI3WVR628XBEX

Active

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PI3WVR628XBEX

-3db Bandwidth	6 GHz
Applications	Telecommunications
Features	MIPI
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Channels [custom]	3
On-State Resistance (Max) [Max]	5 Ohms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

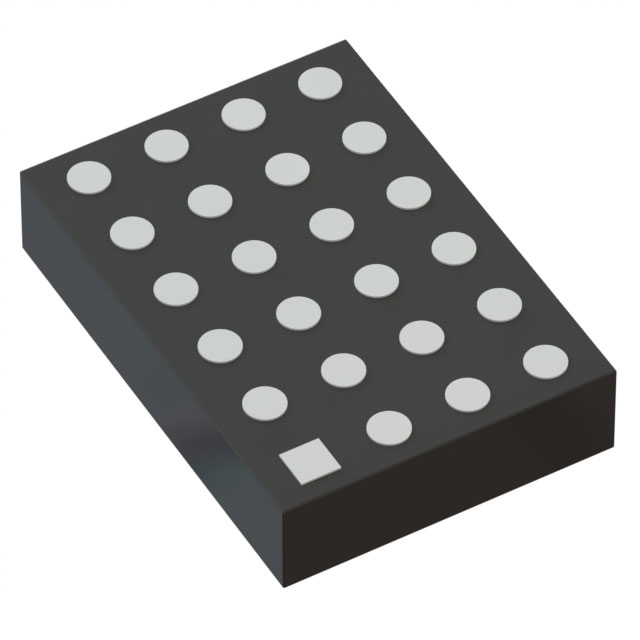

Package / Case	24-XFLGA
Supplier Device Package	24-X1LGA
Supplier Device Package [x]	2.4
Supplier Device Package [y]	1.7
Switch Circuit	SPDT
Voltage - Supply, Single (V+) [Max]	3.6 V
Voltage - Supply, Single (V+) [Min]	1.5 V

PI3WVR628 Series

NRND = Not Recommended for New Design

Part	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Applications	-3db Bandwidth	Features	Switch Circuit	Number of Channels [custom]	Multiplexer/Demultiplexer Circuit	On-State Resistance (Max) [Max]
Diodes Inc PI3WVR628XBEX	24-X1LGA	1.7	2.4	24-XFLGA	Surface Mount	85 °C	-40 °C	3.6 V	1.5 V	Telecommunications	6 GHz	MIPI	SPDT	3	2:1	5 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 19.49
		10	$ 17.98
		25	$ 17.17
		100	$ 15.35
		250	$ 14.64
		500	$ 13.94
	Digi-Reel®	1	$ 19.49
		10	$ 17.98
		25	$ 17.17
		100	$ 15.35
		250	$ 14.64
		500	$ 13.94
	Tape & Reel (TR)	5000	$ 12.50

Description

General part information

PI3WVR628 Series

Diodes' PI3WVR628 is a two-data-lane MIPI switch. This 6 channel single-pole, double-throw (SPDT) switch is optimized for switching between two high-speed (HS) or low-power (LP) MIPI signal. The PI3WVR628 is designed for the MIPI specification and allows connection to CSI/DSI, C-PHY/D-PHY module.
