1712 SL005
ActiveALPHA WIRE

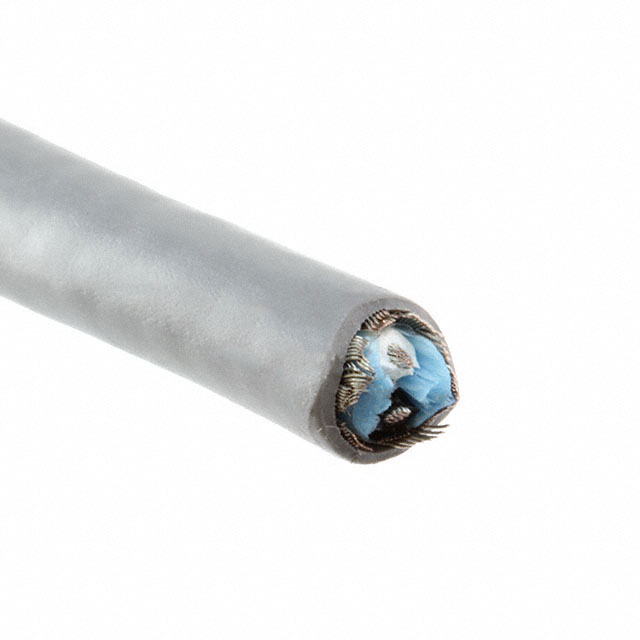

SHIELDED MULTI-CONDUCTOR CABLE BRAID POLYETHYLENE 2CONDUCTORS 20AWG 5.86MM 600VAC SLATE POLYVINYL CHLORIDE 30.48M SPOOL
Deep-Dive with AI
Search across all available documentation for this part.
1712 SL005
ActiveALPHA WIRE
SHIELDED MULTI-CONDUCTOR CABLE BRAID POLYETHYLENE 2CONDUCTORS 20AWG 5.86MM 600VAC SLATE POLYVINYL CHLORIDE 30.48M SPOOL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1712 SL005 | 1712 Series |
|---|---|---|
| Cable Type | Microphone | Microphone |
| Conductor Insulation | Polyethylene (PE) | Polyethylene (PE) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand | 34 AWG, 26 | 26 - 34 AWG |
| Jacket (Insulation) Diameter [diameter] | 0.221 " | 0.221 " |
| Jacket (Insulation) Diameter [diameter] | 5.61 mm | 5.61 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.762 mm | 0.762 mm |
| Jacket (Insulation) Thickness | 0.03 in | 0.03 in |
| Jacket Color | Slate | Slate |
| Length [x] | 30.5 m | 30.5 - 152.4 m |
| Length [x] | 100 ft | 100 - 500 ft |
| Number of Conductors | 2 | 2 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Shield Coverage | 85 % | 85 % |
| Shield Material | Copper, Tinned | Copper, Tinned |
| Shield Type | Braid | Braid |
| Usage | Control, Communication | Control, Communication |
| Voltage | 600 V | 600 V |
| Wire Gauge | 20 AWG | 20 AWG |
1712 Series
SHIELDED MULTI-CONDUCTOR CABLE BRAID POLYETHYLENE 2CONDUCTORS 20AWG 5.86MM 600VAC SLATE POLYVINYL CHLORIDE 30.48M SPOOL
| Part | Conductor Material | Shield Type | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Coverage | Conductor Strand | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Jacket Color | Conductor Insulation | Jacket (Insulation) Material | Wire Gauge | Cable Type | Voltage | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 1712 SL005 | Copper, Tinned | Braid | Communication, Control | 0.221 " | 5.61 mm | 85 % | 26, 34 AWG | 0.762 mm | 0.03 in | 30.5 m | 100 ft | -20 C | 60 °C | Copper, Tinned | Slate | Polyethylene (PE) | Poly-Vinyl Chloride (PVC) | 20 AWG | Microphone | 600 V | 2 |
ALPHA WIRE 1712 SL002 | Copper, Tinned | Braid | Communication, Control | 0.221 " | 5.61 mm | 85 % | 26, 34 AWG | 0.762 mm | 0.03 in | 152.4 m | 500 ' | -20 C | 60 °C | Copper, Tinned | Slate | Polyethylene (PE) | Poly-Vinyl Chloride (PVC) | 20 AWG | Microphone | 600 V | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1712 Series
2 Conductor Microphone Cable Slate 20 AWG Braid 100.0' (30.5m)
