PSR1635-09

Active

Parlex USA LLC

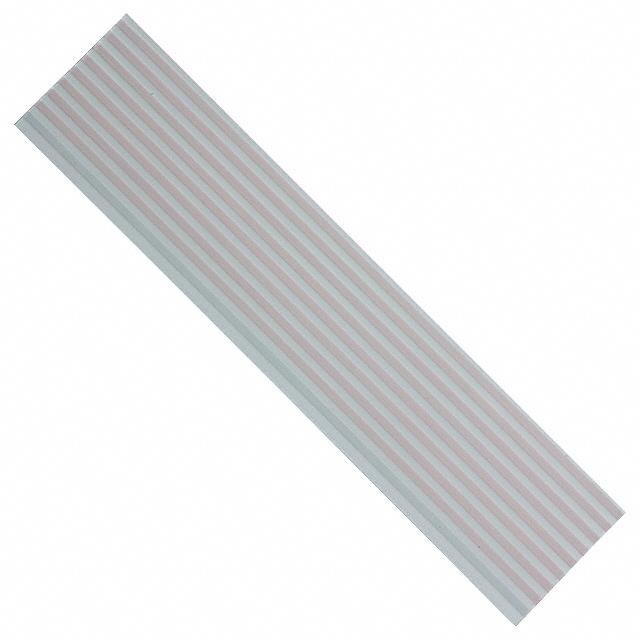

CABLE FFC 9COND 0.100" 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PSR1635-09

Active

Parlex USA LLC

CABLE FFC 9COND 0.100" 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.54
		1	$ 150.47
		1	$ 21.86
		1	$ 84.38
		1	$ 46.98
		5	$ 18.05
		5	$ 38.75
		5	$ 123.23
		5	$ 69.35
		5	$ 10.37
		10	$ 35.49
		10	$ 9.56
		10	$ 63.54
		10	$ 113.02
		10	$ 16.60
		25	$ 8.58
		25	$ 100.08
		25	$ 14.87
		25	$ 56.71
		25	$ 31.72
		50	$ 13.63
		50	$ 7.88
		50	$ 91.23
		50	$ 51.92
		50	$ 29.15
		100	$ 47.48
		100	$ 12.52
		100	$ 26.57
		100	$ 90.55
		100	$ 7.25
	Spool	1	$ 476.94
		2	$ 438.95
		3	$ 418.19
		5	$ 393.48
		7	$ 378.02
		10	$ 375.00

Description

General part information

PSR1635 Series

9 Conductor 0.100" (2.54mm) Flat Flex Cable

Documents

Technical documentation and resources

Datasheet

Specification	PSR1635-09	PSR1635 Series

Cable Length	152.4 m, 7.62 m, 3.05 m, 1.52 m, 30.5 m, 15.24 m	1.52 - 152.4 m
Cable Length	500 ft, 300 in, 10 ft, 5 ft, 100 ', 50 ft	5 - 500 ft
Cable Width	1 in	0.3 - 3.7 in
Cable Width	25.4 mm	7.57 - 93.98 mm
Cable Width	-	0.5 - 2.5 in
Cable Width	-	12.7 - 63.5 mm
Cable Width	-	10.16 - 22.86 mm
Cable Width	-	0.4 - 0.9 in
Conductor Material	Copper, Bare	Copper, Bare
Current Rating (Amps)	3 A	3 A
Features	Conductor 1 Tinned	Conductor 1 Tinned
Jacket (Insulation) Material	Polyester	Polyester
Jacket (Insulation) Thickness	0.05 mm	0.05 mm
Jacket (Insulation) Thickness	0.002 in	0.002 in
Number of Conductors	9	2 - 36
Operating Temperature	105 C	105 C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Ratings	UL Style 2643	UL Style 2643
Voltage Rating	300 VDC	300 VDC
Wire Gauge	27 AWG	27 AWG

Part

Operating Temperature

Jacket (Insulation) Thickness

Wire Gauge

Features

Voltage Rating

Jacket (Insulation) Material
