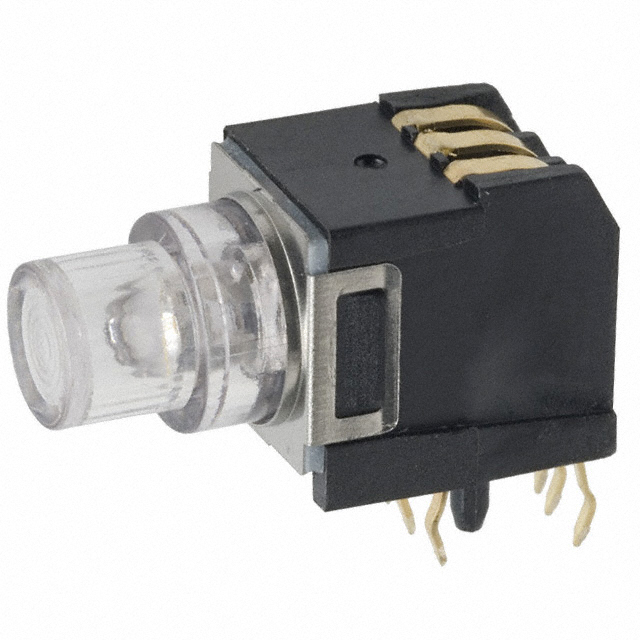

K5V1BU43T
ActiveLITTELFUSE
SWITCH TACTILE SPDT 0.1A 32V
K5V1BU43T
ActiveLITTELFUSE
SWITCH TACTILE SPDT 0.1A 32V
Description
General part information
K5v0 Series Series
C&K’s K5V series illuminated tact switch comes with high, bright LEDs that are able to meet customization requirements. With its reduced space usage on board – and excellent ergonomics – the K5V is perfect for network infrastructure, automotive and medical applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | K5V1BU43T |
|---|---|
| Actuator Length (Right Angle) | 12.4 mm |
| Actuator Orientation | Side Actuated |
| Actuator Type | Translucent |
| Circuit | SPDT |
| Color | Blue |
| Contact Rating (Current) | 0.1 A |
| Features | Tactile Feedback |
| Illumination | Illuminated |
| Illumination Type | LED |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 25000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Force | 400 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Outline Length | 8 mm |
| Outline Width | 10.1 mm |
| Switch Function | On-Mom |
| Switch Travel | 1.2 mm |
| Termination Style | PC Pin |
