C51G-9164-15FT
ActiveCabling123
OM5 16F MPO-LC 15FT FIBER CBL
C51G-9164-15FT
ActiveCabling123
OM5 16F MPO-LC 15FT FIBER CBL
Description
General part information
C51G-9164-15FT

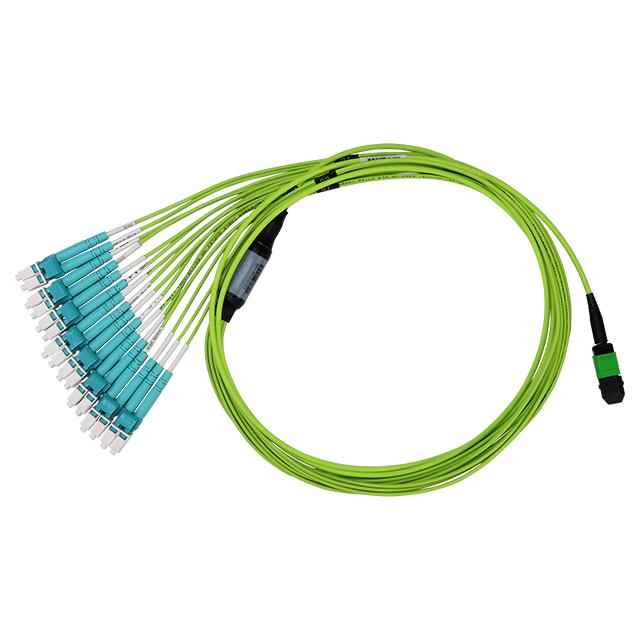

Cable Fiber Optic 16F MPO/APC To LC Duplex (8) OM5 15.0' (4.6m)
Technical Specifications
Parameters and characteristics for this part
| Specification | C51G-9164-15FT |
|---|---|
| 1st Connector | 16F MPO/APC |
| 2nd Connector | LC Duplex |
| 2nd Connector Count | 8 pcs |
| Cable Diameter | 0.12 " |
| Color - Cable | Neon Green |
| Color - Connectors | Green, Aqua |
| Fiber Type | OM5 |
| Insertion Loss | 0.2 dB |
| Insertion Loss (Alt) | 0.6 dB |
| Length - Overall | 15 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Ratings | LSZH |
