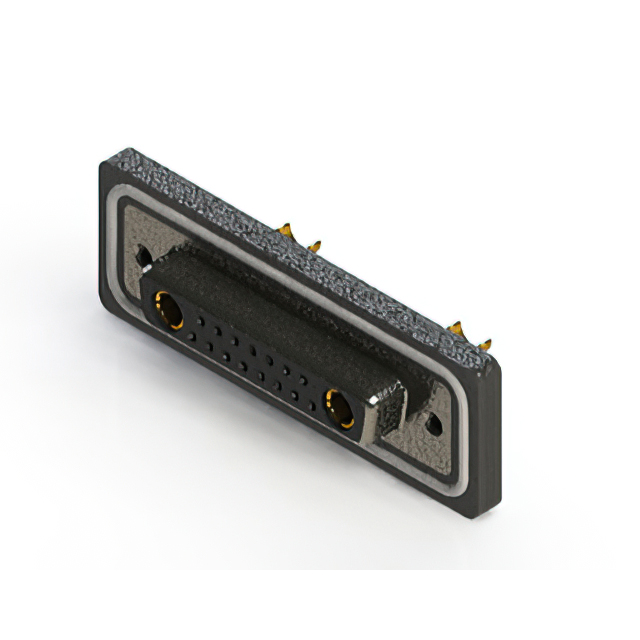

628W17W2122-4NA

Active

EDAC Inc.

CONN D-SUB RCPT 17P PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628W17W2122-4NA

Active

EDAC Inc.

CONN D-SUB RCPT 17P PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628W17W2122-4NA

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.127 µm
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Shielded
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	15
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	17W2, 3 (DB, B)
Voltage Rating	125 VDC

628W17W Series

Part	Contact Finish	Features	Connector Style	Flange Feature	Shell Material, Finish	Ingress Protection	Number of Rows	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Current Rating (Amps)	Contact Type	Dielectric Material	Color	Mounting Type	Connector Type	Voltage Rating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Current Rating (Amps)	Contact Finish Thickness	Termination
EDAC Inc. 628W17W2122-2NA	Gold	Shielded	Combo D-Sub	Housing/Shell (M3)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 20 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)
EDAC Inc. 628W17W2122-1N2	Gold	Shielded	Combo D-Sub	Housing/Shell (4-40)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2		Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)	10A 5A
EDAC Inc. 628W17W2222-2NA	Gold	Shielded	Combo D-Sub	Housing/Shell (M3)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 20 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C			17W2 3 (DB B)		Flash
EDAC Inc. 628W17W2124-4NA	Gold	Shielded	Combo D-Sub	Housing/Shell (M3)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 40 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)			Solder
EDAC Inc. 628W17W2124-4N5	Gold	Board Lock Shielded	Combo D-Sub	4-40 Board Side	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 40 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)			Solder
EDAC Inc. 628W17W2222-3NA	Gold	Shielded	Combo D-Sub	Housing/Shell (M3)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 30 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C			17W2 3 (DB B)		Flash
EDAC Inc. 628W17W2122-3N2	Gold	Shielded	Combo D-Sub	Housing/Shell (4-40)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 30 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)
EDAC Inc. 628W17W2222-1N2	Gold	Shielded	Combo D-Sub	Housing/Shell (4-40)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2		Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C			17W2 3 (DB B)	10A 5A	Flash
EDAC Inc. 628W17W2122-4NA	Gold	Shielded	Combo D-Sub	Housing/Shell (M3)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2	5 A 40 A	Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)
EDAC Inc. 628W17W2122-1NA	Gold	Shielded	Combo D-Sub	Housing/Shell (M3)	Nickel Plated Steel	IP67 - Dust Tight Waterproof	2	UL94 V-0	15	2		Signal and Power	Polybutylene Terephthalate (PBT) Glass Filled	Black	Panel Mount Through Hole	Receptacle Female Sockets	125 VDC	Copper Alloy	-25 °C	85 °C	0.127 µm	5 µin	17W2 3 (DB B)	10A 5A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 15.01

Description

General part information

628W17W Series

17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
