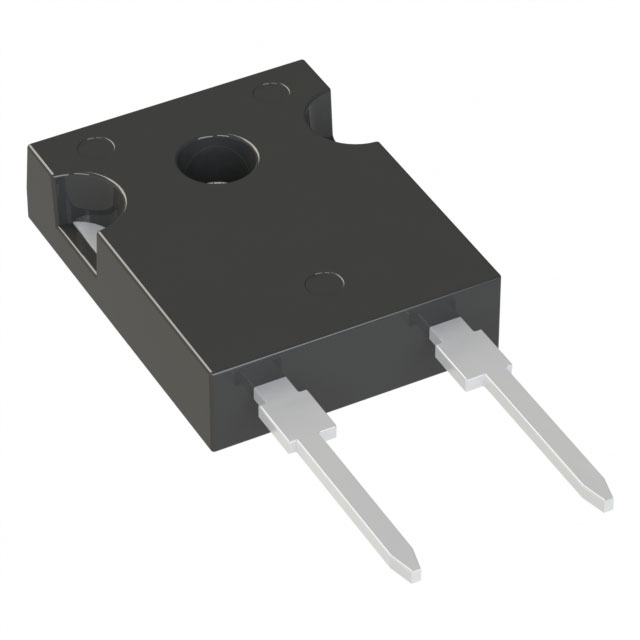

STTH8006W

Active

STMicroelectronics

DIODE GEN PURP 600V 80A DO247

Search across all available documentation for this part.

Active

STMicroelectronics

DIODE GEN PURP 600V 80A DO247

Technical Specifications

Parameters and characteristics for this part

Specification	STTH8006W

Current - Average Rectified (Io)	80 A
Current - Reverse Leakage @ Vr	50 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	DO-247-2 (Straight Leads)
Reverse Recovery Time (trr)	105 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-247
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.6 V

DIODE GEN PURP 600V 80A DO247

Part	Package / Case	Current - Reverse Leakage @ Vr	Speed	Supplier Device Package	Technology	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Mounting Type	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]
STMicroelectronics STTH8006W	DO-247-2 (Straight Leads)	50 µA	200 mA, 500 ns	DO-247	Standard	1.6 V	80 A	Through Hole	105 ns	175 °C	600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 600 V 80A Through Hole DO-247
