5380-6PG-515

Active

Conxall/Switchcraft

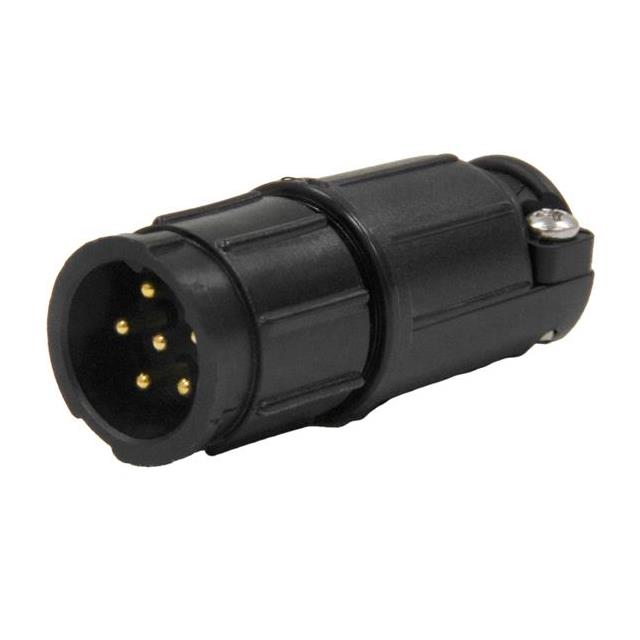

CONN RCPT MALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5380-6PG-515

Active

Conxall/Switchcraft

CONN RCPT MALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5380-6PG-515	5380-6PG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	8.13 mm
Cable Opening [custom]	0.17 in, 0.15 in	0.15 - 0.17 in
Cable Opening [custom]	3.81 mm, 4.32 mm	3.81 - 4.32 mm
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

5380-6PG Series

CONN RCPT MALE 6POS GOLD CRIMP

Part	Shielding	Primary Material	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Number of Positions	Connector Type	Voltage Rating	Ingress Protection	Contact Finish - Mating	Color	Contact Material	Features	Orientation	Fastening Type	Mounting Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 5380-6PG-318	Unshielded	Plastic	4.57 mm	0.18 in	0.2 in	5.08 mm	6	Male Pins, Receptacle	600 V	Weathertight	Gold	Black	Brass	Backshell	Keyed	Bayonet Lock	Free Hanging (In-Line)	Crimp	-40 °C	115 °C	Nylon, Polyamide (PA)
Conxall/Switchcraft 5380-6PG-528	Unshielded	Plastic					6	Male Pins, Receptacle	600 V	Weathertight	Gold	Black	Brass	Backshell, Cable Clamp	Keyed	Bayonet Lock	Free Hanging (In-Line)	Crimp	-40 °C	115 °C	Nylon, Polyamide (PA)	7.37 mm	7.11 mm	0.29 in	0.28 in
Conxall/Switchcraft 5380-6PG-521	Unshielded	Plastic					6	Male Pins, Receptacle	600 V	Weathertight	Gold	Black	Brass	Backshell, Cable Clamp	Keyed	Bayonet Lock	Free Hanging (In-Line)	Crimp	-40 °C	115 °C	Nylon, Polyamide (PA)	5.84 mm	5.33 mm	0.23 in	0.21 in
Conxall/Switchcraft 5380-6PG-530	Unshielded	Plastic					6	Male Pins, Receptacle	600 V	Weathertight	Gold	Black	Brass	Backshell, Cable Clamp	Keyed	Bayonet Lock	Free Hanging (In-Line)	Crimp	-40 °C	115 °C	Nylon, Polyamide (PA)		7.62 mm	0.32 in	0.3 in	8.13 mm
Conxall/Switchcraft 5380-6PG-515	Unshielded	Plastic					6	Male Pins, Receptacle	600 V	Weathertight	Gold	Black	Brass	Backshell, Cable Clamp	Keyed	Bayonet Lock	Free Hanging (In-Line)	Crimp	-40 °C	115 °C	Nylon, Polyamide (PA)						0.15 in, 0.17 in	3.81 mm, 4.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.42

Description

General part information

5380-6PG Series

6 Position Circular Connector Receptacle, Male Pins Crimp
