G88MPH0621CEU
ActiveAmphenol ICC (Commercial Products)
MICRO POWER PLUS 1X6 CABLE SIDE
G88MPH0621CEU
ActiveAmphenol ICC (Commercial Products)
MICRO POWER PLUS 1X6 CABLE SIDE
Description
General part information
G88MPH0621CEU

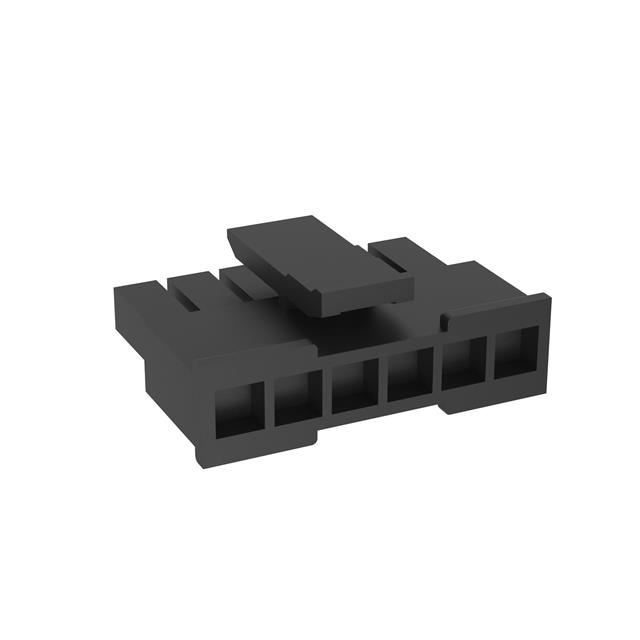

6 Rectangular Connectors - Housings Receptacle Black 0.118" (3.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | G88MPH0621CEU |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Nylon 6, Polyamide (PA6) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.118 in |
