XF-10204
ActiveAmgis, LLC

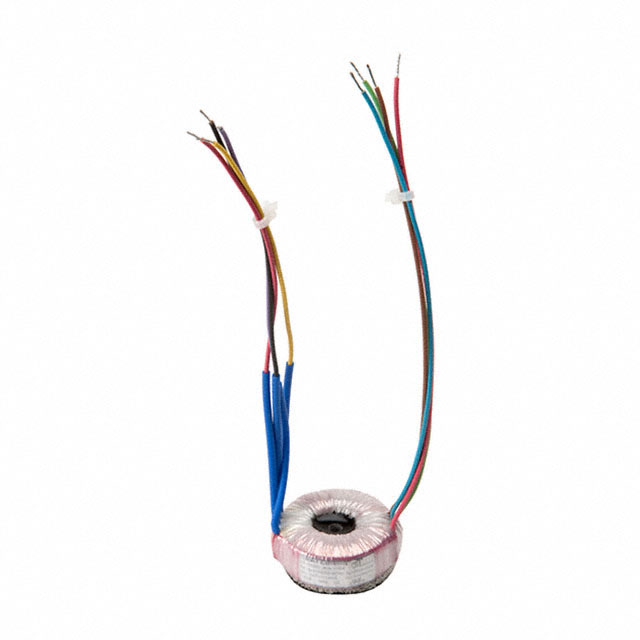

PWR XFMR TOROIDAL 1.6VA CHAS MT
XF-10204
ActiveAmgis, LLC
PWR XFMR TOROIDAL 1.6VA CHAS MT
Description
General part information
XF-10204
PWR XFMR TOROIDAL 1.6VA CHAS MT
Technical Specifications
Parameters and characteristics for this part
| Specification | XF-10204 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 44 mA |
| Current - Output (Max) Series | 22 mA |
| Height - Seated (Max) | 17 mm |
| Mounting Type | Chassis Mount |
| Power - Max | 1.6 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Diameter | 37.5 mm |
| Termination Style | Wire Leads |
| Type | Toroidal |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 18 V |
| Voltage - Secondary (Full Load) (Series) | 36 V |
| Weight | 0.157 lb |
