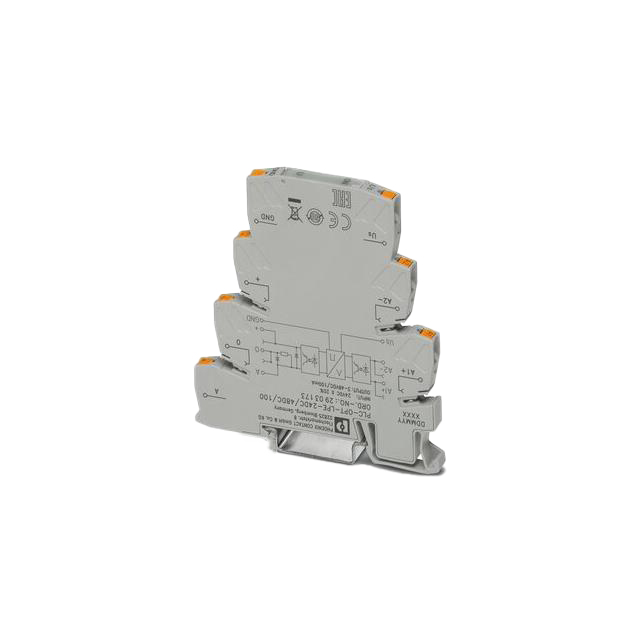

2903173
ActivePhoenix Contact
TIME DELAY & TIMING RELAYS PLC-OPT-LPE-24DC 48DC/100
2903173
ActivePhoenix Contact
TIME DELAY & TIMING RELAYS PLC-OPT-LPE-24DC 48DC/100
Description
General part information
PLC-OPT Series
Programmable (Multi-Function) Time Delay Relay SPST-NO (1 Form A) Delay 0.1A @ 48VDC DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | 2903173 |
|---|---|
| Circuit | SPST-NO (1 Form A) |
| Contact Rating (Current) | 0.1 A |
| Function | Programmable (Multi-Function) |
| Mounting Type | DIN Rail |
| Relay Type | Mechanical Relay |
| Termination Style | Spring Terminal |
| Timing Adjustment Method | DIP Switches |
| Timing Initiate Method | Input Voltage, Trigger Signal |
| Voltage - Supply | 24 VDC |
