MOT-I-81556-106
ActiveISL Products International

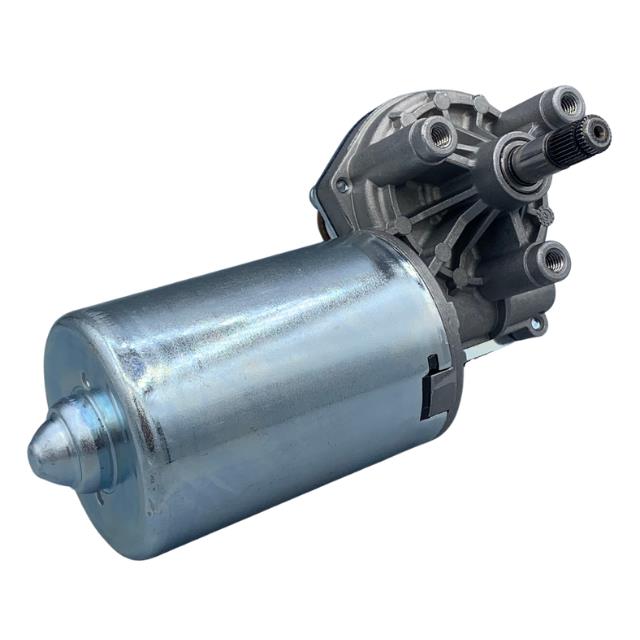

59MM WORM GEAR MOTOR, 24VDC, 51
MOT-I-81556-106
ActiveISL Products International
59MM WORM GEAR MOTOR, 24VDC, 51
Description
General part information
MOT-I-81556-106
Brushed DC Motor Gearmotor 44 RPM 66W 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | MOT-I-81556-106 |
|---|---|
| Diameter - Shaft | 0.372 in |
| Function | Gearmotor |
| Length - Shaft and Bearing | 1.102 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 2 in |
| Power - Rated | 66 W |
| RPM | 44 RPM |
| Size / Dimension Length | 2.323 in |
| Size / Dimension Shape | Round |
| Termination Style | Wire Leads with Connector |
| Torque - Max Momentary (mNm) | 10787.32 mNm |
| Torque - Max Momentary (oz-in) | 1527.61 oz-in |
| Torque - Rated (mNm) | 7158.85 mNm |
| Torque - Rated (oz-in) | 1013.78 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VAC |
