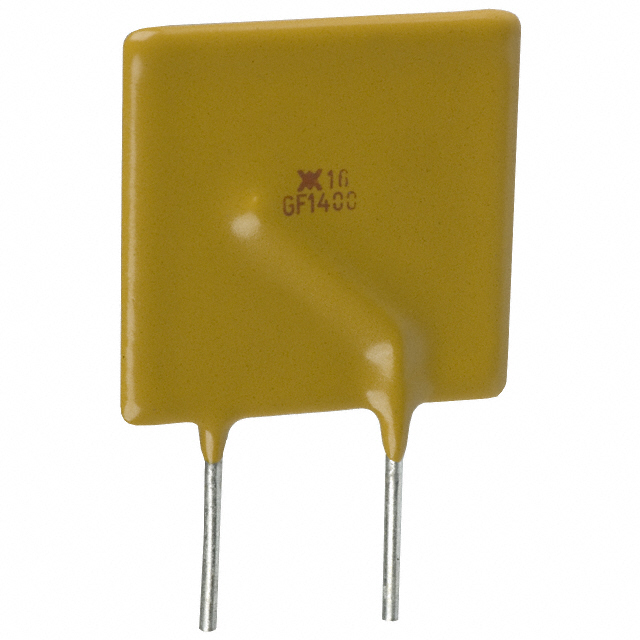

RGE1400
ObsoleteLITTELFUSE
PTC RESET FUSE 16V 14A RADIAL
RGE1400
ObsoleteLITTELFUSE
PTC RESET FUSE 16V 14A RADIAL
Description
General part information
RGE1400
Polymeric PTC Resettable Fuse 16V 14 A Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | RGE1400 |
|---|---|
| Approval Agency | CSA, TUV, UL |
| Current - Hold (Ih) (Max) | 14 A |
| Current - Max | 100 A |
| Current - Trip (It) | 23.8 A |
| Height - Seated (Max) | 1.102 in |
| Lead Spacing | 0.4 in |
| Mounting Type | Through Hole |
| Package / Case | Disc, Radial |
| Resistance - Initial (Ri) (Min) | 2.6 mOhms |
| Resistance - Post Trip (R1) (Max) | 6.4 mOhms |
| Size / Dimension Length | 0.904 in |
| Size / Dimension Width | 0.114 in |
| Time to Trip | 9 s |
| Type | Polymeric |
| Voltage - Max | 16 V |
