UVY1E102MPD

Active

Nichicon

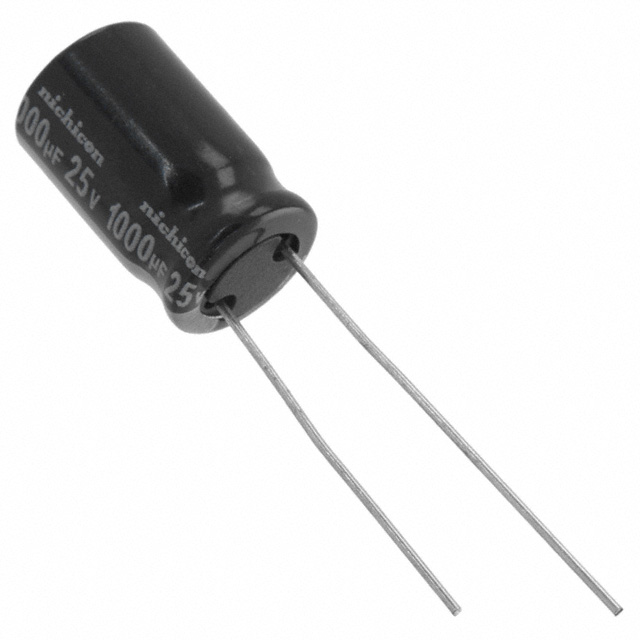

ELECTROLYTIC CAPACITOR, 1000 ΜF, 25 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miniature Type Taping Spec

UVY1E102MPD

Active

Nichicon

ELECTROLYTIC CAPACITOR, 1000 ΜF, 25 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Deep-Dive with AI

DocumentsDatasheet Miniature Type Taping Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UVY1E102MPD	UVY1E Series

Applications	General Purpose	General Purpose
Capacitance	1000 µF	3.3 - 22000 µF
Height - Seated (Max)	-	0.512 - 2.047 in
Height - Seated (Max)	-	13 - 52 mm
Height - Seated (Max)	-	14 mm
Height - Seated (Max) [Max]	0.689 in	0.492 - 1.654 in
Height - Seated (Max) [Max]	17.5 mm	12.5 - 42 mm
Lead Spacing	5 mm	2 - 12.5 mm
Lead Spacing	0.197 in	0.079 - 0.492 in
Lifetime @ Temp.	2000 Hrs	1000 - 2000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	701.5 mA	1.2535 - 701.5 A
Ripple Current @ Low Frequency	610 mA	1.09 - 610 A
Size / Dimension [diameter]	10 mm	5 - 25 mm
Size / Dimension [diameter]	0.394 in	0.197 - 0.984 in
Tolerance	20 %	20 %
Voltage - Rated	25 VDC	25 VDC

UVY1E Series

ELECTROLYTIC CAPACITOR, 4700 ΜF, 25 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Part	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Tolerance	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Voltage - Rated	Ripple Current @ Low Frequency	Mounting Type	Lifetime @ Temp.	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
Nichicon UVY1E472MHD	General Purpose	0.63 in	16 mm	Radial, Can	105 ░C	-55 °C	4700 µF	20 %	1.8055 A	7.5 mm	0.295 in	25 VDC	1.57 A	Through Hole	2000 Hrs	Polar	1.063 in	27 mm
Nichicon UVY1E331MPD1TA	General Purpose	0.315 "	8 mm	Radial, Can	105 ░C	-55 °C	330 µF	20 %	412.5 mA	3.5 mm	0.138 in	25 VDC	275 mA	Through Hole	1000 Hrs	Polar	0.512 "	13 mm
Nichicon UVY1E222MHD	General Purpose	0.492 in	12.5 mm	Radial, Can	105 ░C	-55 °C	2200 µF	20 %	1.2535 A	5 mm	0.197 in	25 VDC	1.09 A	Through Hole	2000 Hrs	Polar	1.063 in	27 mm
Nichicon UVY1E101MDD1TD	General Purpose	0.197 "	5 mm	Radial, Can	105 ░C	-55 °C	100 µF	20 %	187.5 mA	2 mm	0.079 in	25 VDC	125 mA	Through Hole	1000 Hrs	Polar			0.492 in	12.5 mm
Nichicon UVY1E471MPD1TD	General Purpose	0.394 in	10 mm	Radial, Can	105 ░C	-55 °C	470 µF	20 %	570 mA	5 mm	0.197 in	25 VDC	380 mA	Through Hole	2000 Hrs	Polar			0.551 "		14 mm
Nichicon UVY1E102MPD1TD	General Purpose	0.394 in	10 mm	Radial, Can	105 ░C	-55 °C	1000 µF	20 %	701.5 mA	5 mm	0.197 in	25 VDC	610 mA	Through Hole	2000 Hrs	Polar			0.689 in	17.5 mm
Nichicon UVY1E222MHD1TO	General Purpose	0.492 in	12.5 mm	Radial, Can	105 ░C	-55 °C	2200 µF	20 %	1.2535 A	5 mm	0.197 in	25 VDC	1.09 A	Through Hole	2000 Hrs	Polar	1.063 in	27 mm
Nichicon UVY1E682MHD	General Purpose	0.63 in	16 mm	Radial, Can	105 ░C	-55 °C	6800 µF	20 %	2.1275 A	7.5 mm	0.295 in	25 VDC	1.85 A	Through Hole	2000 Hrs	Polar	1.476 in	37.5 mm
Nichicon UVY1E332MHD	General Purpose	0.63 in	16 mm	Radial, Can	105 ░C	-55 °C	3.3 mF	20 %	1.61 A	7.5 mm	0.295 in	25 VDC	1.4 A	Through Hole	2000 Hrs	Polar	1.063 in	27 mm
Nichicon UVY1E471MPD	General Purpose	0.394 in	10 mm	Radial, Can	105 ░C	-55 °C	470 µF	20 %	570 mA	5 mm	0.197 in	25 VDC	380 mA	Through Hole	2000 Hrs	Polar			0.551 "		14 mm
