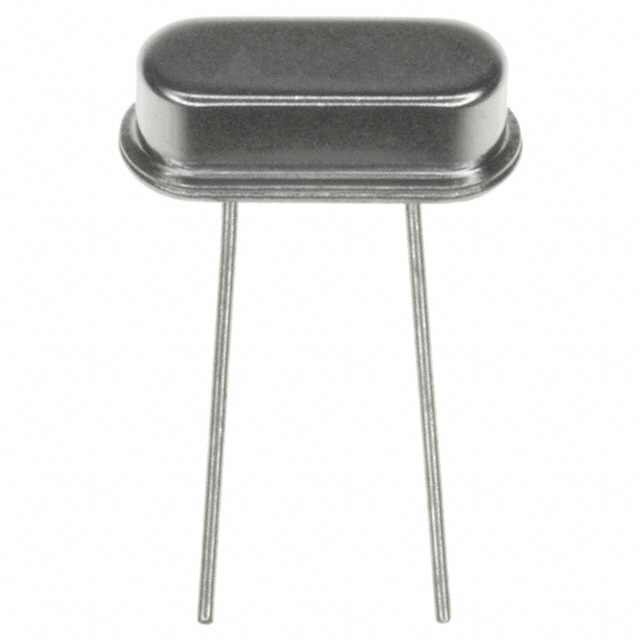

Specification	FC4STCBMF24.0

ESR (Equivalent Series Resistance)	30 Ohm
Frequency	24 MHz
Frequency Stability	50 ppm
Frequency Tolerance	30 ppm
Height - Seated (Max)	0.142 in
Load Capacitance	20 pF
Mounting Type	Through Hole
Operating Mode	Fundamental
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Package / Case	HC-49/US
Size / Dimension Length	0.447 in
Size / Dimension Width	0.183 in
Type	MHz Crystal
