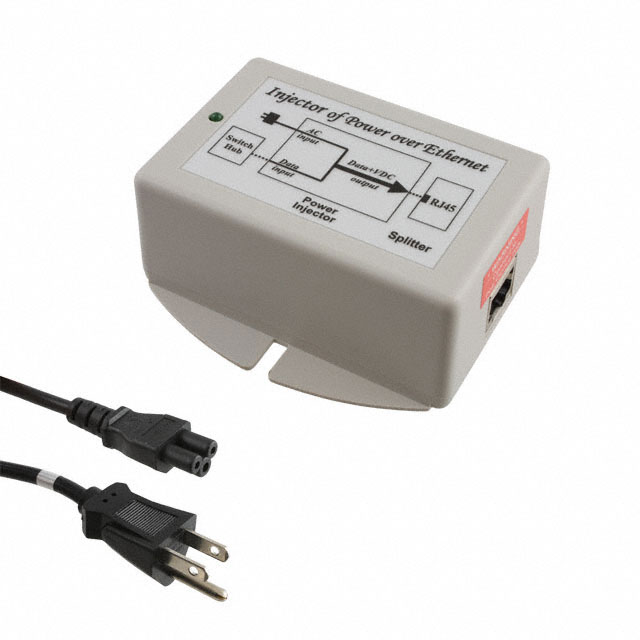

POE-18I
ActiveTE Connectivity Raychem Cable Protection
POE INJECTOR 16.2W 18V DESKTOP
Deep-Dive with AI
Search across all available documentation for this part.
POE-18I
ActiveTE Connectivity Raychem Cable Protection
POE INJECTOR 16.2W 18V DESKTOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | POE-18I |
|---|---|
| Compliance | IEEE802.3af |
| Current - Output | 900 mA |
| Efficiency | 70 % |
| Features | OCP, SCP |
| Input Connector | IEC 320-C6 |
| Mounting Type | Desktop |
| Note | AC Power Cord Included |
| Number of Ports | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Output Connector | RJ45 (Data, Power) |
| Power (Watts) - Per Port | 16.2 W |
| Size / Dimension [x] | 82.6 mm |
| Size / Dimension [x] | 3.25 in |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38.1 mm |
| Type | Midspan Injector |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 18 V |
| Weight | 146.96 g |
| Weight | 0.324 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 36.63 | |
| 5 | $ 34.54 | |||
| 10 | $ 33.67 | |||
| 25 | $ 32.56 | |||
| 50 | $ 31.74 | |||
| 100 | $ 30.95 | |||
| 250 | $ 29.92 | |||
Description
General part information
POE-18 Series
18V Power Over Ethernet (POE) 1 Port Midspan Injector Data Rate
