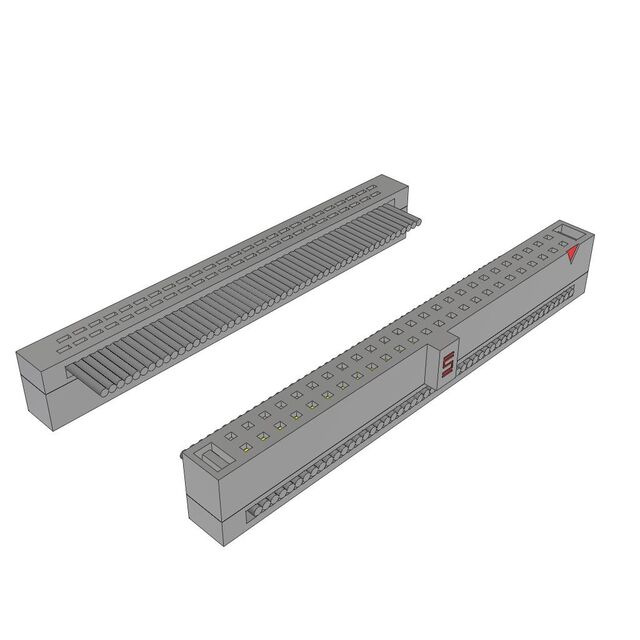

FFTP-25-D-03.85-01-N-R

Active

Samtec Inc.

.050 X .050 C/L TWISTED PAIR FEM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FFTP Datasheet

FFTP-25-D-03.85-01-N-R

Active

Samtec Inc.

.050 X .050 C/L TWISTED PAIR FEM

Deep-Dive with AI

DocumentsDatasheet FFTP Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFTP-25-D-03.85-01-N-R

Cable Termination	IDC
Color	Multiple, Twisted Pair (Round)
Connector Type	Socket to Socket, Reversed
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key
Length	3.85 "
Length	0.321 '
Length	97.79 mm
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFTP-25 Series

Part	Contact Finish	Number of Positions	Color	Cable Termination	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable [x]	Pitch - Cable	Pitch - Connector	Pitch - Connector	Features	Shielding	Length	Length	Length	Connector Type	Length [x]	Length [x]
Samtec Inc. FFTP-25-D-03.85-01-N	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded	3.85 "	0.321 '	97.79 mm	Socket to Socket
Samtec Inc. FFTP-25-D-03.85-01-N-R	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded	3.85 "	0.321 '	97.79 mm	Socket to Socket Reversed
Samtec Inc. FFTP-25-D-08.77-01-F-N	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded	8.77 in	0.731 ft	222.76 mm	Socket to Socket
Samtec Inc. FFTP-25-D-08.77-01-N-R	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded	8.77 in	0.731 ft	222.76 mm	Socket to Socket Reversed
Samtec Inc. FFTP-25-D-18.00-01-F-N	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded				Socket to Socket	457.2 mm	1.5 ft
Samtec Inc. FFTP-25-D-18.00-01-F-N-R	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded				Socket to Socket Reversed	457.2 mm	1.5 ft
Samtec Inc. FFTP-25-D-03.85-01-F-N	Gold	50	Multiple Twisted Pair (Round)	IDC	2	10 Áin	0.25 Ám	0.025 in	0.64 mm	0.05 in	1.27 mm	Polarizing Key	Unshielded	3.85 "	0.321 '	97.79 mm	Socket to Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 60.37
		10	$ 46.81
		25	$ 42.51
		50	$ 39.61
		100	$ 36.99
		250	$ 33.90

Description

General part information

FFTP-25 Series

50 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.321' (97.79mm, 3.85")
