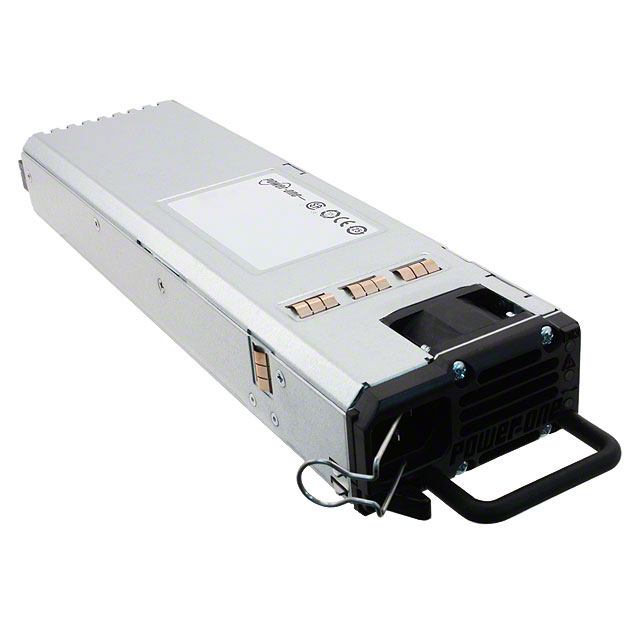

SFP650-12BS101G

Active

Bel Power Solutions

AC/DC CONVERTER 12V 650W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 12V 650W

Technical Specifications

Parameters and characteristics for this part

Specification	SFP650-12BS101G

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	53 A
Efficiency	86 %
Features	I2C Interface, PFC, Standby Output, Load Sharing, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	650 W
Size / Dimension [x]	12.38 "
Size / Dimension [x]	314.5 mm
Size / Dimension [y]	3.07 in
Size / Dimension [y]	78 mm
Size / Dimension [z]	40 mm
Size / Dimension [z]	1.57 "
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V

AC/DC CONVERTER 12V 650W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Efficiency	Type	Minimum Load Required	Features	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Mounting Type	Current - Output 1	Number of Outputs	Voltage - Output 1
Bel Power Solutions SFP650-12BS101G	90 VAC	264 VAC	ITE (Commercial)	86 %	Front End		Adjustable Output, I2C Interface, Load Sharing, PFC, Standby Output, Universal Input	CE	3.07 in	12.38 "	40 mm	78 mm	1.57 "	314.5 mm	650 W	Chassis Mount	53 A	1	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Front End AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available
