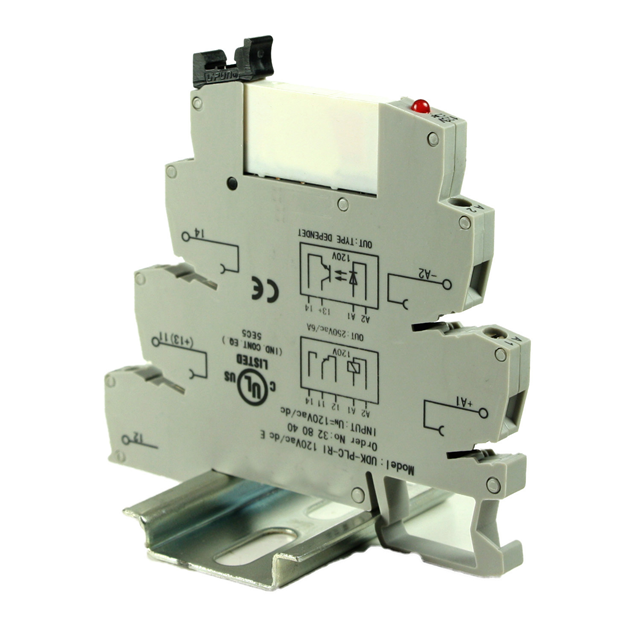

ASI328040

Active

ASI-Ez

RELAY SPDT 6A 120V

Search across all available documentation for this part.

Active

ASI-Ez

RELAY SPDT 6A 120V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 12.43

General part information

Relay SPDT (1 Form C) 120VAC/DC Coil DIN Rail

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ASI328040	ASI328 Series

Coil Current	3.2 mA	3.2 - 35 mA
Coil Voltage	120 VAC, 120 VDC	12 - 120 VAC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C), DPDT (2 Form C), SPDT
Contact Rating (Current)	6 A	6 - 8 A
Mounting Type	DIN Rail	DIN Rail
Operate Time	8 ms	8 - 15 ms
Release Time	4 ms	4 - 8 ms
Switching Voltage	250 VAC	250 VAC
Termination Style	Screw Terminal	Spring Terminal, Screw Terminal, Screw Clamp

RELAY SPDT 6A 24V

Part	Coil Voltage	Mounting Type	Termination Style	Operate Time	Contact Rating (Current)	Contact Form	Switching Voltage	Release Time	Coil Current
ASI-Ez ASI328044	24 VAC	DIN Rail	Spring Terminal	8 ms	6 A	SPDT (1 Form C)	250 VAC	4 ms
ASI-Ez ASI328043	24 VDC	DIN Rail	Spring Terminal	8 ms	6 A	SPDT (1 Form C)	250 VAC	4 ms
ASI-Ez ASI328040	120 VAC, 120 VDC	DIN Rail	Screw Terminal	8 ms	6 A	SPDT (1 Form C)	250 VAC	4 ms	3.2 mA
ASI-Ez ASI328007	120 VAC, 120 VDC	DIN Rail	Screw Terminal	8 ms	6 A	SPDT (1 Form C)	250 VAC	4 ms	3.2 mA
ASI-Ez ASI328011	12 VDC	DIN Rail	Screw Terminal	15 ms	8 A	DPDT (2 Form C)	250 VAC	8 ms	35 mA
ASI-Ez ASI328002	24 VDC	DIN Rail	Screw Terminal	8 ms	6 A	SPDT (1 Form C)	250 VAC	4 ms
ASI-Ez ASI328013	24 VAC	DIN Rail	Screw Terminal	15 ms	8 A	DPDT (2 Form C)	250 VAC	8 ms	18 mA
ASI-Ez ASI328003	24 VAC	DIN Rail	Screw Terminal	8 ms	6 A	SPDT (1 Form C)	250 VAC	4 ms
ASI-Ez ASI328037	24 VAC	DIN Rail	Screw Terminal	8 ms	6 A	SPDT (1 Form C)	250 VAC	4 ms
ASI-Ez ASI328047	120 VAC, 120 VDC	DIN Rail	Spring Terminal	8 ms	6 A	SPDT (1 Form C)	250 VAC	4 ms	3.5 mA
