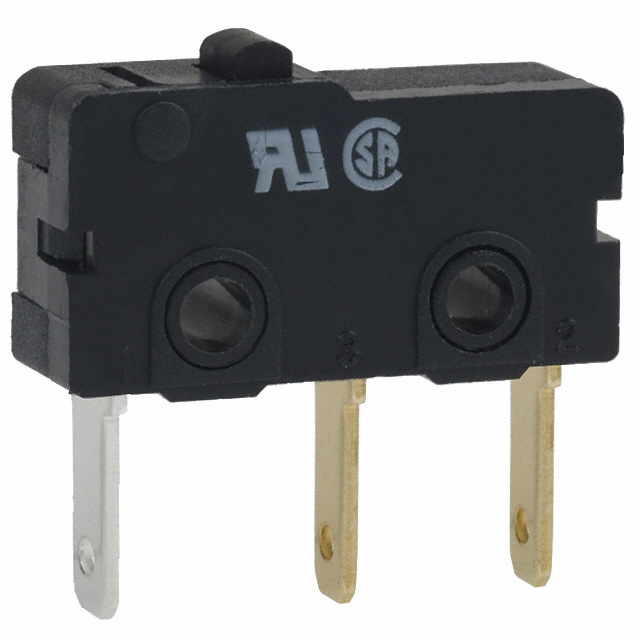

ZV10B70A01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACT SPDT 100MA 125V

Part	Voltage Rating - AC	Operating Position	Operating Position	Release Force	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Electrical Life	Current Rating (Amps)	Overtravel	Overtravel	Differential Travel	Differential Travel	Mounting Type	Termination Style	Operating Force	Pretravel	Pretravel	Mechanical Life	Actuator Type	Switch Function
Honeywell Sensing and Productivity Solutions ZV10B70A01	125 V	0.449 in	11.4 mm	14 gf	-40 °C	120 °C	SPDT	1000000 Cycles	100 mA	0.4 mm	0.015 "	0.008 in	0.2 mm	Chassis Mount	Quick Connect - 0.110" (2.8mm)	65 gf	0.043 "	1.1 mm	10000000 Cycles	Round (Pin Plunger)	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch SPDT Chassis Mount
