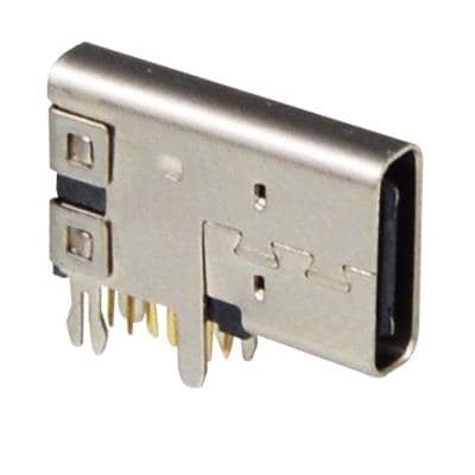

Specification	KUSBX-SL-CS1N14-B

Connector Type	USB-C (USB TYPE-C)
Current Rating	3 A
Features	Board Lock
Gender	Receptacle
Mating Cycles	10000 cycles
Mounting Feature	Flag, Vertical
Mounting Type	Through Hole, Right Angle
Number of Contacts	24
Number of Contacts (Dummy)	10
Number of Contacts (Functional)	14
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder

KUSBX Series

USB Connectors Upright-USB A Orang G-30u Plt-Cont HiRet

Part	Contact Finish	Insulation Color	Shell/Shielding Material	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Shielding	Termination	Voltage - Rated	Number of Ports	Mounting Type	Gender	Number of Contacts	Mounting Feature	Current Rating	Features	Mating Cycles	Current Rating Options	Specifications
Kycon, Inc. KUSBX-SMT2AP1S-B	Gold	Black	Copper Alloy	UL94 V-0	-55 °C	85 °C	USB-A (USB TYPE-A)	Shielded	Solder	30 VAC	1	Right Angle Surface Mount Through Hole	Plug	4	Horizontal	1 A
Kycon, Inc. KUSBXHT-SLAS1N-O30-HRF	Gold	Orange	Stainless Steel	UL94 V-0	-55 °C	85 °C	USB-A (USB TYPE-A)	Unshielded	Solder	30 VAC	1	Right Angle Through Hole	Receptacle	4	Flag Vertical	1.5 A	Board Lock	1500 cycles
Kycon, Inc. KUSBX-AS1N-W	Gold	White	Copper Alloy	UL94 V-0	-40 °C	85 °C	USB-A (USB TYPE-A)	Shielded	Solder	30 VAC	1	Right Angle Through Hole	Receptacle	4	Horizontal	1.5 A	Board Lock	1500 cycles
Kycon, Inc. KUSBX-SMTTH-CS1-BTR	Gold	Black	Stainless Steel	UL94 V-0	-30 °C	85 °C	USB-C (USB TYPE-C)	Shielded	Solder		1	Right Angle Through Hole	Receptacle	24	Horizontal			10000 cycles	0.25A 1.25A 5A 6.25A	Superspeed + (USB 3.1) USB 3.2 Gen 2 (USB 3.1 Gen 2
Kycon, Inc. KUSBX-BS1N-W30					-40 °C	85 °C	USB-B (USB TYPE-B)	Shielded	Solder	30 VAC	1	Right Angle Through Hole	Receptacle	4	Horizontal	1 A	Board Lock
Kycon, Inc. KUSBX-AS2N-B30	Gold	Black	Brass	UL94 V-0	-40 °C	85 °C	Stacked USB-A (USB TYPE-A)	Shielded	Solder	30 VAC	2	Right Angle Through Hole	Receptacle	8	Horizontal	1 A	Board Lock	1500 cycles
Kycon, Inc. KUSBX-AS1N9-1-BL30	Gold	Blue	Brass	UL94 V-0	-55 °C	85 °C	USB-A (USB TYPE-A)	Shielded	Solder		1	Right Angle Through Hole	Receptacle	9	Horizontal			1500 cycles	0.25A 1.8A	Superspeed (USB 3.0) USB 3.1 Gen 1 USB 3.2 Gen 1
Kycon, Inc. KUSBX-SMTAS1NWTR					-40 °C	85 °C	USB-A (USB TYPE-A)	Shielded	Solder	30 VAC	1	Right Angle Surface Mount Through Hole	Receptacle	4	Horizontal	1 A	Board Lock
Kycon, Inc. KUSBX-SMT-BS1N-B30	Gold	Black	Brass	UL94 V-0	-40 °C	85 °C	USB-B (USB TYPE-B)	Shielded	Solder	30 VAC	1	Right Angle Surface Mount	Receptacle	4	Horizontal	1 A	Board Guide Solder Retention	1500 cycles
Kycon, Inc. KUSBX-SMT2AP5S-B	Gold	Black	Copper Alloy	UL94 V-0	-55 °C	85 °C	USB-A (USB TYPE-A)	Shielded	Solder	30 VAC	1	Right Angle Surface Mount Through Hole	Plug	4	Horizontal	1 A
