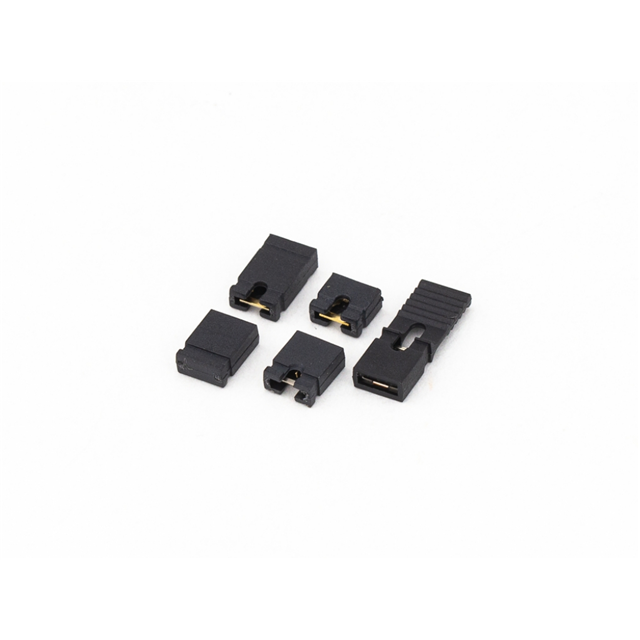

2006-3P-BB

Active

Oupiin

MINI JUMPERS, 2.54MM PITCH, BLAC

Search across all available documentation for this part.

Active

Oupiin

MINI JUMPERS, 2.54MM PITCH, BLAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Open Top 0.100" (2.54mm) Gold

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	2006-3P-BB	2006 Series

Color	Black	Red, Black, White, Blue
Contact Finish	Gold	Gold
Current Rating (Amps)	3 A	3 A
Gender	Female Sockets	Female Sockets
Height	-	4.5 - 13.5 mm
Height	-	0.177 - 0.531 in
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Polyester Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions or Pins (Grid)	-	3 - 5
Number of Positions or Pins (Grid) [custom]	1 x 2	1 x 2, 1 x 4
Number of Positions or Pins (Grid) [custom]	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Type	Open Top	Open Top, Grip

MINI JUMPERS, 2.54MM PITCH, RED

Part	Height [z]	Height [z]	Gender	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Material Flammability Rating	Pitch [x]	Pitch [x]	Housing Material	Color	Current Rating (Amps)	Contact Finish	Number of Positions or Pins (Grid)
Oupiin 2006-DRB	8 mm	0.315 in	Female Sockets	Open Top	1 x 2	2	UL94 V-0	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Red	3 A	Gold
Oupiin 2006-2X02B	6 mm	0.236 "	Female Sockets	Open Top	1 x 2	2	UL94 V-0	2.54 mm	0.1 in	Polyester Thermoplastic, Glass Filled	Black		Gold
Oupiin 2006-B-WB	6 mm	0.236 "	Female Sockets	Open Top	1 x 2	2	UL94 V-0	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	White	3 A	Gold
Oupiin 2006-WERB	13.5 mm	0.531 "	Female Sockets	Grip, Open Top	1 x 2	2	UL94 V-0	2.54 mm	0.1 in		Red	3 A	Gold
Oupiin 2006-BUB	6 mm	0.236 "	Female Sockets	Open Top	1 x 2	2	UL94 V-0	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Blue	3 A	Gold
Oupiin 2006-2X05B	6 mm	0.236 "	Female Sockets	Open Top			UL94 V-0	2.54 mm	0.1 in	Polyester Thermoplastic, Glass Filled	Black		Gold	5
Oupiin 2006-BRB	6 mm	0.236 "	Female Sockets	Open Top	1 x 2	2	UL94 V-0	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Red	3 A	Gold
Oupiin 2006-ARB	6.5 mm	0.256 "	Female Sockets	Open Top	1 x 2	2	UL94 V-0	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Red	3 A	Gold
Oupiin 2006-2X03B	6 mm	0.236 "	Female Sockets	Open Top			UL94 V-0	2.54 mm	0.1 in	Polyester Thermoplastic, Glass Filled	Black		Gold	3
Oupiin 2006-2X04B	6 mm	0.236 "	Female Sockets	Open Top	1 x 4		UL94 V-0	2.54 mm	0.1 in	Polyester Thermoplastic, Glass Filled	Black		Gold	4
