750-00008
ObsoleteParallax Inc.
AC/DC WALL MOUNT ADAPTER 9V 2.7W
750-00008
ObsoleteParallax Inc.
AC/DC WALL MOUNT ADAPTER 9V 2.7W
Description
General part information
750-00008

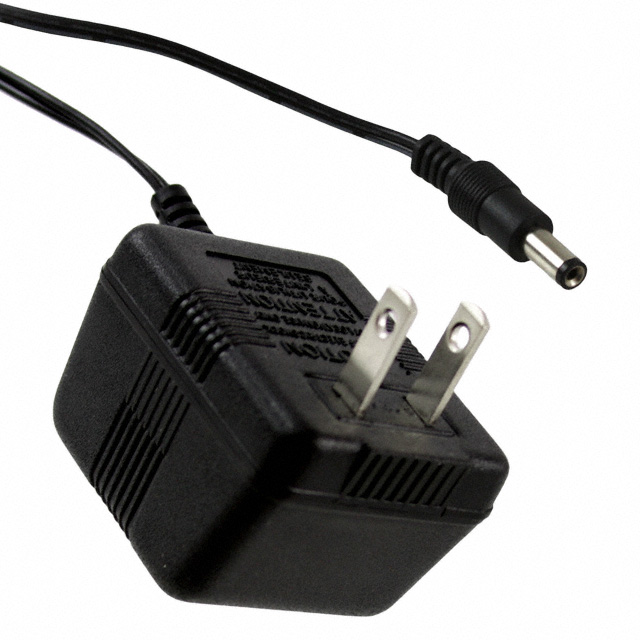

9V 2.7 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 750-00008 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 300 mA |
| Form | Wall Mount (Class II) |
| Input Connector | CEE 7/16 |
| Input Type | Fixed Blade |
| Output Connector | Barrel Plug |
| Output Connector I.D. | 2.1 mm |
| Output Connector Length | 12 mm |
| Output Connector O.D. | 5.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 2.7 W |
| Region Utilized | Europe |
| Voltage - Input | 120 VAC |
| Voltage - Output | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
