5600461
LTBPhoenix Contact
PWR ENT RCPT NEMA5-15 DIN SCREW
5600461
LTBPhoenix Contact
PWR ENT RCPT NEMA5-15 DIN SCREW
Description
General part information
5600461

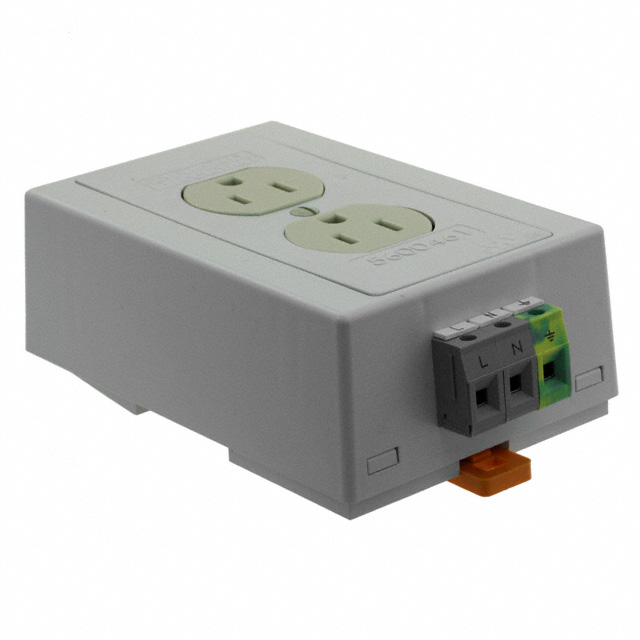

Power Connector Receptacle, Female Sockets NEMA 5-15R DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | 5600461 |
|---|---|
| Approval Agency | cULus, cUL, UL |
| Connector Style | NEMA 5-15R |
| Connector Type | Receptacle, Female Sockets |
| Current Rating | 15 A |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | DIN Rail |
| Number of Connections | 2 |
| Number of Positions (per connection) | 3 |
| Termination | Screw |
| Voltage Rating | 125 V |
